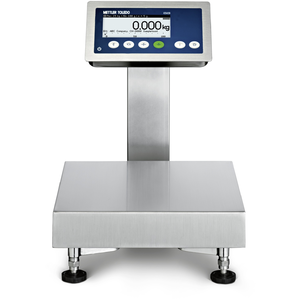

Bench Scale ICS429g-QA3
Speed up Production.
Optimize your production processes
An optimal combination between terminal and weighing platform (t-, f- or c-version) leads to less production failure and speeds up your productivity.
Resist wet and harsh 24/7
All parts have been built according to the latest hygienic design guidelines supporting an easy, fast and efficient cleaning procedure.
Easy to operate
All you need for basic weighing. The screen content can be configured to your special needs.
|Maximum Capacity Maximum Capacity:3 kgMaximum Capacity:3 kg||3 kg|
|Readability Readability:0.2 gReadability:0.2 g||0.2 g|
|Repeatability (sd)||0.1 g|
|Platform Size (LxWxH) Platform Size (LxWxH):9 in x 9 in x 3.81 in (229 mm x 229 mm x 97 mm)Platform Size (LxWxH):9 in x 9 in x 3.81 in (229 mm x 229 mm x 97 mm)||9 in x 9 in x 3.81 in (229 mm x 229 mm x 97 mm)|
|Material||Stainless Steel V2A (AISI 304)|
|Protection Rating Protection Rating:IP65; IP67; IP68; IP69kProtection Rating:IP65Protection Rating:IP67Protection Rating:IP68Protection Rating:IP69k||IP65; IP67; IP68; IP69k|
|Display||Graphic LCD with backlit|
|Readability (Certified)||1 g|
|Housing||Stainless Steel V2A (AISI 304)|
|Hazardous Approval Hazardous Approval:NoHazardous Approval:No||No|
|Legal for Trade Legal for Trade:OIMLLegal for Trade:OIML||OIML|
|Repeatability (typical)||0.1 g|
|Interfaces (Optional)||Discrete I/O; Ethernet; RS422; RS485; USB; WLAN|
|Voltage||AC Version; Battery Version|
|Environment Environment:Wet & Harsh Wet (>/=IP66)Environment:Wet & Harsh Wet (>/=IP66)||Wet & Harsh Wet (>/=IP66)|
|Hygenic Design Hygenic Design:YesHygenic Design:Yes||Yes|
|Applications Applications:Thermal Values; Simple Weighing / Basic WeighingApplications:Thermal ValuesApplications:Simple Weighing / Basic Weighing||Thermal Values; Simple Weighing / Basic Weighing|
|Platform Type||Bench Scale|
