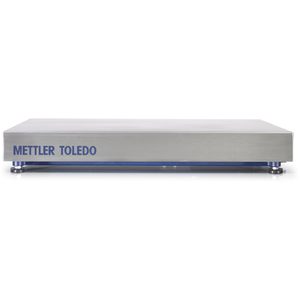

Weighing Platform Ex PBA655x-BC60 US
For Accurate Weighing.
For High Precision Applications
The PBA655x extremely robust platform design features an approvable resolution of NTEP 10'000d for optimal weighing precision.
Highly Durable
The load frame is powder-coated and the load plate consists of brushed stainless steel. This stands for high durability over a long period of time.
Hazardous Area Approved
The PBA655x platform series is suitable for hazardous environments according FM IS / Class, I, II, III / Division 1.
Specifications - Weighing Platform Ex PBA655x-BC60 US
| Maximum Capacity | 100 lb (60 kg) |
| Readability | 0.002 lb (1 g) |
| Readability (Certified) | 0.01 lb (10 g) |
| Repeatability (sd) | 0.0016 lb (0.7 g) |
| Platform Size (LxW) | 19.7 in x 25.6 in (500 mm x 650 mm) |
| Hazardous Approval | FM Class I, Div. 1; ATEX; FM |
| Material | Powder Coated Carbon Steel |
| Repeatability | 0.002 lb (1 g) |
| Linearity (typical) | 0.005 lb |
| Linearity | 0.01 lb (10 g) |
| Linearity, typically | 2 g |
| Protection Rating | IP65 |
| Cable | 8.2 ft (2.5 m) |
| Applications | Over Under Checkweighing; Counting / Counting Applications; In motion Weighing / Dynamic Weighing; Simple Weighing |
| Legal for Trade | OIML |
| Hygenic Design | No |
| Platform Type | Bench Platforms |
| Repeatability (typical) | 0.002 lb |
| Repeatability (typical) | 1 g |
| Scale Interface | Analog |
| Material Number(s) | 30024698 |
