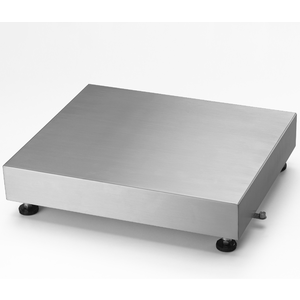

Weighing Platform PBA429-B60
For Demanding Applications.
The rugged, full stainless steel frame & the hermetically sealed load cell ensures a long life time also when used in harsh, wet & humid environments (IP68/IP69k).
Easy to Clean
The open and sturdy platform design is built according to hygienic standards and allows fast, thorough and easy cleaning.
Optimally placed and specific adjusted overload stops grant the best possible protection against load cell damaging.
|Maximum Capacity||100 lb (60 kg)|
|Readability||0.01 lb (5 g)|
|Repeatability (sd)||0.005 lb (2.1 g)|
|Platform Size (LxW)||15.7 in x 19.7 in (400 mm x 500 mm)|
|Material||Stainless Steel V2A (AISI 304)|
|Protection Rating||IP68; IP69k|
|Readability (Certified)||0.02 lb (20 g)|
|Repeatability||0.01 lb (5 g)|
|Cable||9.9 ft (3 m)|
|Resolution||0.02 lb (20 g)|
|Linearity (typical)||0.02 lb|
|Linearity||0.02 lb (20 g)|
|Linearity, typically||20 g|
|Maximum Capacity||50 kg|
|Platform Type||Bench Platforms|
|Readability (Certified)||10 g|
