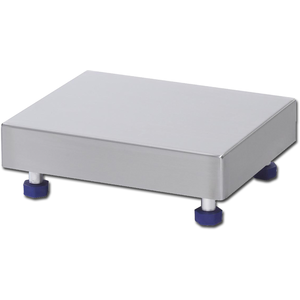

Bench Scale PBA430-A6

The Bench Scale for Harsh Environments.Bench scale

When Cleanliness Counts

The PBA430 is designed according to the latest hygienic design guide lines. This outstanding product line is EHEDG, GMP and NSF certified. In addition, the platforms are suitable for Ex-zone 2/22.

The Surface Shows the Quality

The platform surface is electro-polished (except 600x800mm) providing more thorough cleaning and reduced risk of contamination or cross-contamination. The load plate is dishwasher safe.

Hermetically Sealed

The load cell is hermetically sealed. The IP69k protection indicates that it is suitable for high pressure cleaning. Even the harshest environments cannot damage this stainless steel load cell.

Specifications - Bench Scale PBA430-A6
Maximum Capacity
3 kg/6 kg (10 lb)
0.2 g (0.0005 lb)
0.08 g (100 lb)
Platform Size (Length)
240 mm (9.5 in)
Platform Size (Width)
300 mm (11.8 in)
Platform Size (Height)
95 mm (3.7 in)
Stainless Steel V2A (AISI 304)
Protection Rating
IP69k; IP68
Hazardous Approval
ATEX Cat. 3GD (analog); Safe area only! (SICSpro)
Scale Interface
0.002 lb
Readability (Certified)
1 g; 2 g (0.002 lb)
0.2 g
0.0005 lb
Repeatability (typical)
0.08 g
Repeatability (typical)
100 lb
New Attribute (2)
1 m (3.3 ft)
Legal for Trade
Wet & Harsh Wet (>/=IP66)
Dimensions/Platform Size
</=400 mm; from 6.3" to 15.7"
Hazardous Area
Non-hazardous area; Zone 2/22
Hygenic Design
Performance Optimization
Digital Interface: Optional with IDNet Interface available; Easy Scale Leveling: For fast & precise leveling; For Harsh Wet Environments: Hermetically sealed stainless steel load cell
Compliance Support
GMP certified: Documented compliance for regulated environments; Hygienic Designed: EHEDG & NSF approved & Easy to Clean
Weighing Platform: For versatile weighing tasks in harsh wet environment
Maximum Capacity (AM metric)
5 kg
Platform Type
Bench Platforms
Legal for Trade Class OIML
Class III
Legal for Trade Class NTEP
Class III
Readability (Certified) (AM metric)
1 g
Zero Return (typical)
0.1 g (0.00022 lb)
Error of Indication at half load (typical)
0.15 g (0.00033 lb)
Hysteresis (typical)
0.3 g (0.00066 lb)
Eccentric Load Deviation at 1/3 of Full Load (typical) (Metric)
0.4 g
Eccentric Load Deviation at 1/3 of Full Load (typical)
0.00088 lb
Error of Indication at full load (typical)
0.15 g (0.00033 lb)
EasyPrint Name
Material Number(s)


Product Brochures

Extended Product Information

Food Safety with Hygienic Design
Avoid contamination - hygienically designed equipmentMETTLER TOLEDO heeft de juiste oplossingen om u te helpen de voedselveiligheid te verbeteren en t...
