CX35 AdvancedLine Checkweigher - Overview - METTLER TOLEDO

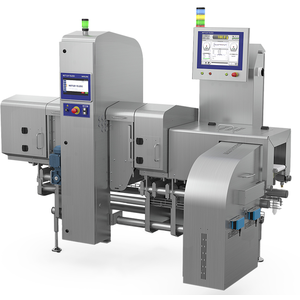

CX35 AdvancedLine Checkweigher

Precision and Versatility.This combined checkweighing and X-ray inspection system integrates precision weighing, contamination detection, and quality control functions in one space-saving device, offering compliance with industry standards for packaged products up to 10 kg.

Precision Weighing for Highest Accuracy

Sophisticated EMFR load cells designed in Switzerland deliver accuracy from 0.01g, offering full compliance with Weights and Measures regulations.

Diverse Product Handling Options

A multitude of mechanical and software product handling options ensure smooth product transfer through the x-ray curtain, increasing productivity.

Ideally Suited as Critical Control Point

Separate reject mechanisms and extensive due diligence functionality to comply with retailer standards in HACCP & HARPC governed packaging lines.

CX3570 AdvancedLine
Specifications - CX35 AdvancedLine Checkweigher
from ±0.01 g (10 mg)
Weights & Measures design approval for official verification (MID certifiable)
Combination Options
X-Ray; Vision
Customization Options
Bespoke Handling
IP Rating
IP 54, optional IP 65 (water protection design)
Maximum Product Weight
10 kg
Product Width
400 mm
Production Environment
Dry; Wet
500 ppm
Weighing Range
5 g - 10 000 g
Weighing Technology (Load Cell)
Material Number(s)

Outstanding Detection Sensitivity

Product safety and quality is achieved by the reliable detection of physical contaminants such as shards of glass, metal, calcified bone, and high-density rubber and plastic.

Clean and Compact Design

The compact, open frame design with only four feet on the floor and curved surfaces enables easy installation and good access to all machine areas for cleaning, supporting HACCP and HARPC regimes and helping to ensure maximum uptime.

Intuitive Interfaces

Two robust and configurable color touchscreens offer intuitive operation with individual user access profiles and password protection in more than 30 languages. The separate HMIs enable the systems to perform independently of each other.

Increased Line Efficiency

With a throughput of up to 300 packs per minute, this combination system helps to increase productivity and efficiency. The large touchscreens and multilingual software reduce the risk of operator errors, increasing productivity.

Optimized Detection for Each Product

You can select either 0.4 mm or 0.8 mm diodes in order to reach maximum X-ray detection sensitivity levels according to your individual product and packaging application.

Global Service Support

A global network of service experts provide fast remote and on-site support. Our comprehensive service offer helps you to achieve regulatory compliance, highest performance and maximum uptime throughout the life of your product inspection equipment.

Enhancing Production Data Visibility

Ensure the highest levels of regulatory compliance through real-time data collection. ProdX, our PC-based software, constantly monitors and fully documents all production parameters, quality incidents, user interactions and performance verification routines.



CX35 AdvancedLine Datasheet
The CX35 AdvancedLine offers highly accurate weighing and checks products for contaminants, protecting your consumers and the reputation of your brand...


ProdX™ Software Brochure
ProdX™ allows you to connect and control your entire product inspection management process from a single point or from multiple remote locations, elim...
C-Series Checkweighers
The C-Series with its product lines – StandardLine, PlusLine and AdvancedLine represents the very latest in weighing technology.

Related Links

Guide to Checkweighing Technology for Food and Pharmaceutical Manufactures
The Checkweighing Guide provides a comprehensive overview of how to use checkweighing technology as part of an effective quality assurance programme.
