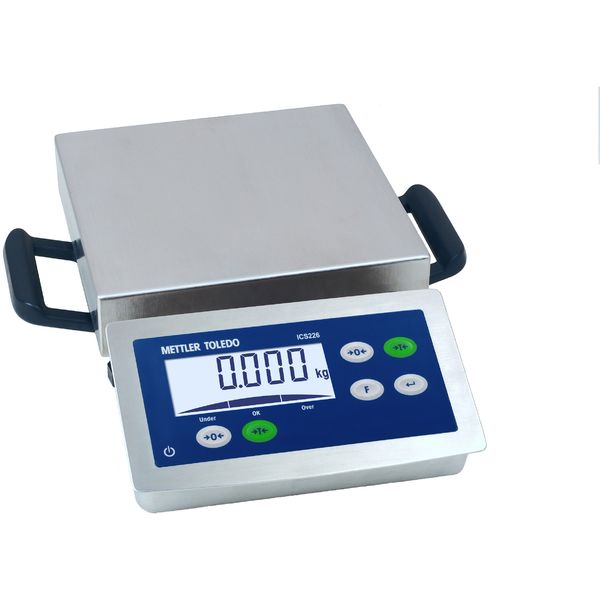

Compact Scale ICS226-QA6FCL-US
The Compact Checkweigher.
Ergonomic and Mobile Design
ICS226 provides double zero/tare keys and an intuitive indicator to increase productivity, along with a built-in rechargeable battery and removable handle for mobile weighing applications.
Full stainless steel housing and stainless steel load cell provide a long life, even in wet and harsh environments, with IP65/IP57 ingress protection ratings.
Easy to Clean
Hygienic design supports an easy, fast and efficient cleaning procedure.
|Maximum Capacity||15 lb (6 kg)|
|Readability||0.005 lb (0.002 kg)|
|Readability (Certified)||0.005 lb (0.002 kg)|
|Repeatability (sd)||0.00066 lb (0.002 kg)|
|Platform Size (LxWxH)||9 in x 9 in x 3.07 in (228 mm x 228 mm x 78 mm)|
|Weighing Pan Dimensions (HxW)||1.97 in x 9 in (50 mm x 228 mm)|
|Protection Rating||IP67 terminal; IP65 Platform|
|Repeatability||0.005 lb (1 g)|
|Display||7 segment LCD with backlit|
|Application Software||; ; Simple weighing|
|Repeatability (typical)||0.00066 lb|
|Repeatability (typical)||0.002 kg|
|Weighing Pan Dimensions||9 in (228 mm)|
|Power Supply||6V Ni-MH rechargable battery 3800 mAh|
|Power Supply (DC)||6 V – 6 V|
|Applications||Dynamic weighing; Over Under Checkweighing; Simple Weighing|
|Dimensions/Platform Size||</=400 mm; from 6.3" to 15.7"|
|Environment||Dusty & Light Wet (IP65)|
|Legal for Trade||NTEP|
|Voltage||AC Version; Battery Version|
|Maximum Capacity||6 kg|
|Platform Type||Compact Scale|
|Readability (Certified)||2 g|
