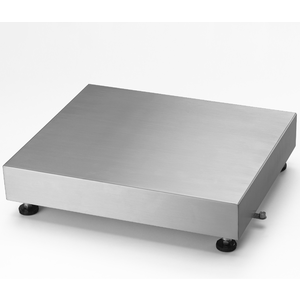

Weighing Platform PBA226-B30
For Short Time Wet Environments.
The rugged, electro polished full stainless steel frame ensures a long life time also when used in demanding applications (IP65).
Easy to Clean
The open and sturdy platform design, built according to hygienic standards, allowing fast, thorough and easy cleaning.
Optimally placed and specific adjusted overload stops grant the best possible protection against load cell damaging.
|Maximum Capacity||50 lb (30 kg)|
|Readability||0.005 lb (2 g)|
|Repeatability (sd)||0.0031 lb (1.4 g)|
|Platform Size (LxW)||15.7 in x 19.7 in (400 mm x 500 mm)|
|Material||Stainless Steel V2A (AISI 304)|
|Readability (Certified)||0.01 lb (10 g)|
|Repeatability||0.005 lb (2 g)|
|Cable||7.5 ft (2.3 m)|
|Applications||Over Under Checkweighing; In motion Weighing / Dynamic Weighing; Thermal Values; Simple Weighing|
|Legal for Trade||OIML|
|Resolution||0.01 lb (10 g)|
|Linearity (typical)||0.01 lb|
|Linearity||0.01 lb (10 g)|
|Linearity, typically||10 g|
|Maximum Capacity||25 kg|
|Platform Type||Bench Platforms|
|Readability (Certified)||5 g|
