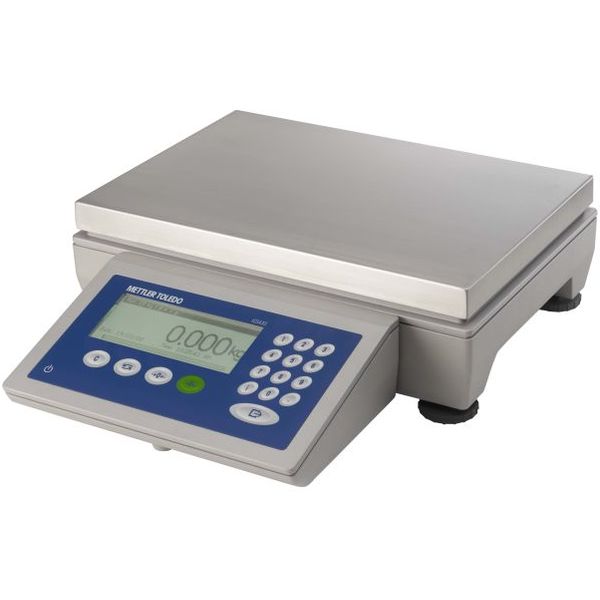

Compact Scale ICS435s-15LA/f/M

Reliable Performance.

Strain Gauge Technology

ICS435, the basic weighing level solution, is optimized for quick and easy weighing applications. It features a numeric keypad for quick pretaring.

Durable and Rugged

Tough enough for use in industrial environments with aluminum die cast housing, overload protection and robust foil keypad.

Guaranteed Accuracy

This system is legal for trade, and its accuracy is guaranteed by a nationally accredited facility prior to shipment.

Specifications - Compact Scale ICS435s-15LA/f/M
Maximum Capacity
15 kg
Readability (Certified)
2 g
Repeatability (sd)
0.1 g
Platform Size (Length)
240 mm (11 in)
Platform Size (Width)
350 mm (13.8 in)
Platform Size (Height)
110 mm (4.3 in)
Material
Aluminium diecast
Protection Rating
IP54
Repeatability
0.2 g
Hazardous Approval
No
Housing
Aluminum Diecast
Interfaces
RS232
Display
Graphic LCD with backlit
Repeatability (typical)
0.1 g
Application Software
Dynamic Weighing; Simple weighing
Legal for Trade
OIML
Data Interface
Serial; USB; Ethernet; WLAN
Applications
Simple Weighing; Dynamic weighing
Environment
Dry (<IP65)
Hazardous Area
Non-hazardous area
Voltage
Battery Version; AC Version
Scale Interface
SICSpro
Interfaces (Optional)
USB; Ethernet; RS422; RS485; WLAN; Discrete I/O
Hygenic Design
No
Performance Optimization
MinWeigh: Minimum Weigh determination acc. your tolerance limits; Easy Scale Leveling: For fast & precise leveling; High Resolution: Special aluminum strain gauge load cell
Process Integration
Variety of Interfaces: For easy process integration; 1 Standard & 1 Optional Interface: Serial, USB, Ethernet, WLAN, Dig. I/O; Control Additional Platforms: 1 platform attachable
Data Management
Convenient Printing: Easy creation of print & label templates; Custom Print Formats: Odette, AIAG, Galia etc.
Compliance Support
Intuitive User Guidance: Prevents from operator errors
Versatility
Mobile Operation: Battery optional available; Good Readability: Graphic LCD-Display with backlit; Numeric Keypad: For fast operation; Versatile Scale: For demanding weighing tasks in dry environment
Platform Type
Compact Scale
Legal for Trade Class OIML
Class III
Zero Return (typical)
0.1 g
Error of Indication at half load (typical)
0.2 g
Hysteresis (typical)
0.2 g
Eccentric Load Deviation at 1/3 of Full Load (typical) (Metric)
0.9 g
Error of Indication at full load (typical)
0.2 g
EasyPrint Name
ICS435s-15LA/f/M
Material Number(s)
22023084
