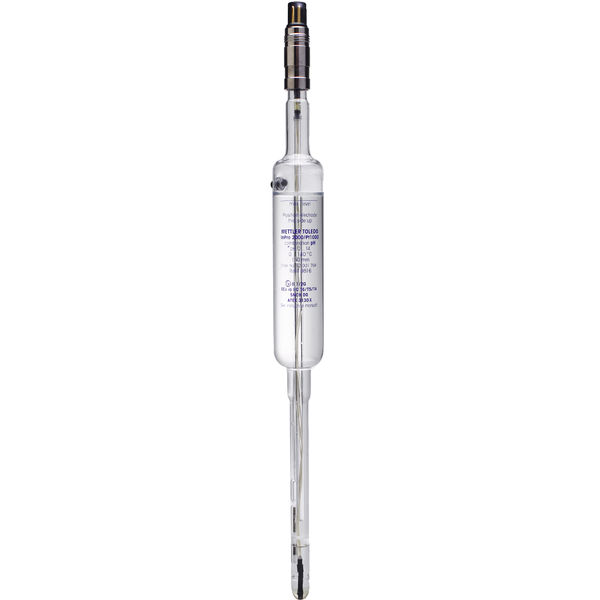

InPro 2000 120/PT1000/9848 Refillable Analog pH Sensor

pH Sensor InPro 2000 120/PT1000/9848

Refillable pH Probe with Friscolyt

The InPro 2000 120/PT1000/9848 is a refillable analog pH probe with an integrated PT1000 temperature sensor for demanding applications. This 120 mm refillable pH sensor with Friscolyt electrolyte is a reliable pH measurement solution.

For Use in Extreme Conditions
The InPro 2000 120/PT1000/9848 uses a pressurizable reference electrolyte to ensure measurement stability and low maintenance in harsh applications.

Refillable Sensor with Long Lifetime
This pH sensor uses a refillable Friscolyt electrolyte to ensure reliable results over a long lifetime in media with proteins/organic solvents.

Watertight connection
The IP 68 watertight cable connection provides excellent signal transmission in all environments.

pH Sensor InPro 2000 120/PT1000/9848
◄Predchádzajúci produkt
Plniteľné sondy pH a sondy Redox
Ďalší produkt►
Technické parametre - pH Sensor InPro 2000 120/PT1000/9848
Analógové alebo ISM senzory Analog
Parametre merania pH
Typ sklenenej membrány pH High Alkali glass (HA)
Jednoduchý alebo dvojitý kontakt Single Junction Refillable
Dĺžka senzoru 120 mm
Teplotný signál PT1000
Typ pripojenia VP
Uzemnenie roztoku/redox kovov None
Elektrolyt Friscolyt
pH range 0-14 pH
Odolnosť voči tlaku (bar) 0 to 6 barg (in presurized housing)
Odolnosť voči tlaku (psi) 0 to 87 psig (in presurized housing)
Referenčný systém Argenthal with silver-ion trap
Sterilizovateľná Yes
Autoklávovateľná Yes
Membrána Ceramic
ATEX Certification SEV 14 ATEX 0168 X<br> Ex ia IIC T6/T5/T4/T3 Ga/Gb
FM approval IS/ I, II, III /1/ABCDEFG /T6
IECEx Certificate of Conformity IECEx SEV 14.0025X<br> Ex ia IIC T6/T5/T4/T3 Ga/Gb
Rozsah merania teplôt (imp.) 32 to 284° F
Rozsah merania teplôt (metric.) 0 to 140° C
Objednávkové číslo/čísla 52001436

Features and Benefits

Reliable in Demanding Applications
The InPro 2000 120/PT1000/9848 refillable pH sensor uses a pressurizable reference electrolyte that ensures permanent self-cleaning of the diaphragm. This leads to long-term pH measurement stability and low maintenance in harsh applications.

Reliability in Challenging Media
This refillable pH sensor uses Friscolyt electrolyte. This electrolyte is designed to provide optimal results and an extended lifetime in media with high protein or organic solvent concentrations. It's also well suited for low temperature media.

Meets Your Installation Requirements
The InPro 2000 120/PT1000/9848 has an integrated PT1000 temperature signal for reliable temperature compensation. With a 120 mm length, it is optimal when short installation lengths are needed.

Accurate, Reliable Measurement System
The InPro 2000 is designed with long-term accuracy and reliability in mind. It is sterilizable and autoclavable, has a silver-ion trap to prevent sulfide poisoning of the junction, and is ATEX and FM certified for installation in hazardous areas.
