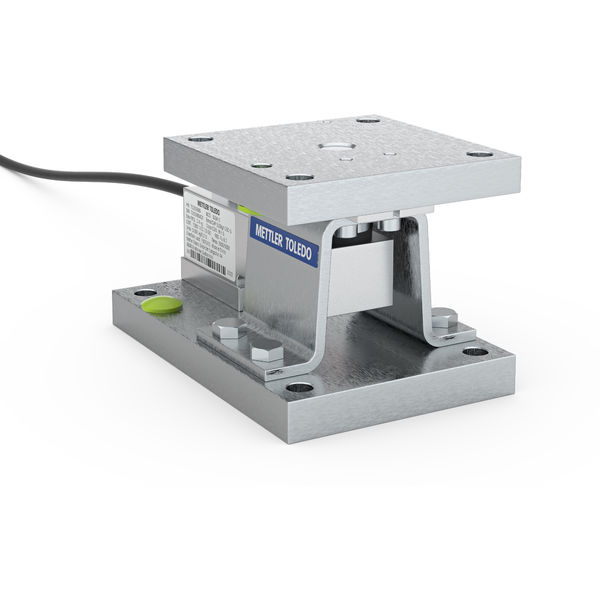

Weigh Module SWB405 220kg 5m SS EN1090

Name: Weigh Module SWB405 220kg 5m SS EN1090
Brand: Mettler Toledo

Weigh Module SWB405 MultiMount Stainless Steel 220kg EN1090

Material nr.: 30830590

All Safety on Board

Offers all safety features, including anti-uplift protection, 360° checking and down-stop protection to ensure the safety of tank weighing.

Easy Integration

SafeLockTM feature is built into SWB405 MultiMountTM weigh modules to make installation easier with all components locked in ideal initial positions.

Reliable Weighing

The hermetically sealed SLB415 load cell with IP68 rating can meet most industrial requirements.

Low Contamination Risk

The powder-coated SWB405 MultiMountTM ensures zinc and copper material content is below 1% to significantly reduce the risk of cross-contamination in Li-ion battery production.

Specifikationer - Weigh Module SWB405 220kg 5m SS EN1090

Maximum Capacity	500 lb (220 kg)
Material	Stainless 304 Electropolish
Metrology	OIML C3, NTEP III 5M
Load Cell	SLB415
Environment / Material	Wash-down / Stainless Steel
Protection Rating	IP68 NEMA 6
Hazardous Approval	ATEX, FM
Criticality	Standard
Cable	5 m
