Standardized, modular design with either IP54 or IP65 rating. A variety of standardized mechanical and software options support individual needs.
A robust 7" color touchscreen offers intuitive operation in 30 languages. Machine messages are communicated as clear text.
Quick and Easy Installation
Pre-configured machine height, conveyor length, recipe memory as well as weighing limits and tolerances support the easy installation of the system.

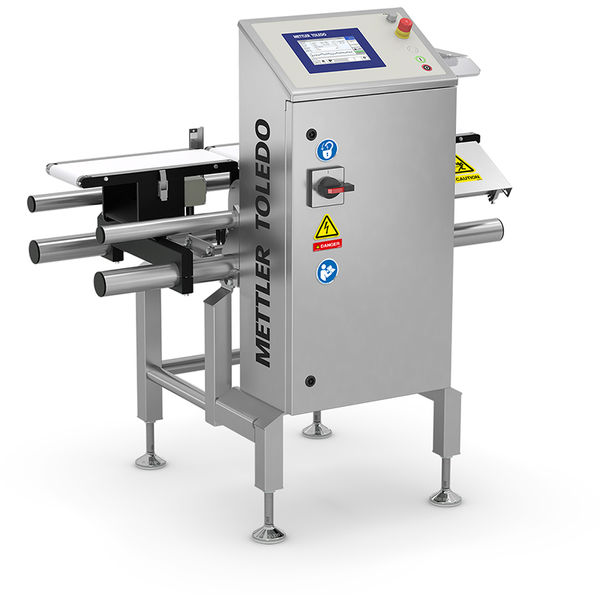

Material No.: 24003100
| Throughput||200 ppm|
| Weighing Range||0.7 oz - 13 lb|
| Product Width||400 mm|
| Hygienic Requirement|| Wipe Down (<IP54)|
Low Pressure (IP65)
| Maximum Product Weight||6 kg|
| Combination Options||Metal Detection|
| Transport Height||550 mm - 1,100 mm (± 50 mm)|
| IP Rating|| IP54 (optional IP65)|
| Accuracy||from ±0.5 g|
| Production Environment|| Dusty|
| Weighing Technology (Load Cell)||Strain Gauge|
| Approval||Weights & measures design approval for official verification (MID certifiable)|
| Weighing Combinations||Contamination Detection|
Data Governance to Support Performance
Over 10 different interface / protocol combinations including Ethernet, Fieldbus and OPC technologies enable IoT / Industry 4.0 initiatives so that production data can be accessed, analyzed and controlled anytime and anywhere.
Product Handling for Process Stability
A range of mechanical options increase process stability and Overall Equipment Efficiency (OEE) by reducing unexpected downtime. These include transition, transport and stability options for multiple packaging types and formats.
Software Options Increase Productivity
A large selection of enhanced software options help to increase productivity. These include process and fill level control, and statistical reporting for proof of compliance with industry standards.
Metal Detector Integration
The CM31 StandardLine combines reliable weight control and metal detection in one space saving, robust machine that is ideally suited as a Critical Control Point (CCP).
Easy to Clean
With only 4 feet on the floor, the system provides easy cleaning access whilst design aspects such as sloped surfaces prevent product retention.
Weighing Technology and Approval
The robust, temperature compensated digital strain gauge load cell delivers solid accuracy at high throughputs. Optional MID certification helps to comply with local weighing regulations and reduces costly product waste.
Global Service Support
A global network of service experts provides fast remote and on-site support. Our comprehensive service offering supports regulatory compliance, high performance, and maximum uptime throughout the life cycle of your product inspection equipment.
