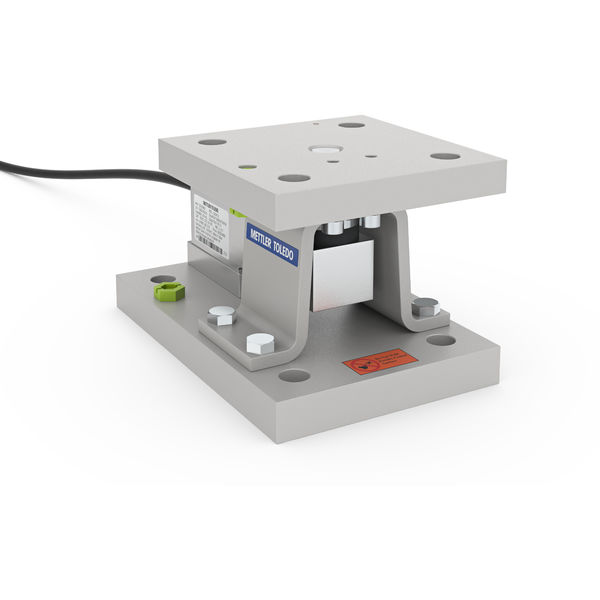

Weigh Module SWB405 550kg 5m CS EN1090
Accurate, Reliable, Service-Friendly.Weigh Module SWB405 MultiMount Carbon Steel 550kg EN1090
All Safety on Board
Offers all safety features, including anti-uplift protection, 360° checking and down-stop protection to ensure the safety of tank weighing.
Easy Integration
SafeLockTM feature is built into SWB405 MultiMountTM weigh modules to make installation easier with all components locked in ideal initial positions.
Reliable Weighing
The hermetically sealed SLB415 load cell with IP68 rating can meet most industrial requirements.
Číslo produktu: 30830596
Související produkty
Low Contamination Risk
The powder-coated SWB405 MultiMountTM ensures zinc and copper material content is below 1% to significantly reduce the risk of cross-contamination in Li-ion battery production.
Technické údaje
Specifikace - Weigh Module SWB405 550kg 5m CS EN1090
| Maximum Capacity | 1,250 lb (550 kg) |
| Material | Powder Coated Carbon Steel |
| Metrology | OIML C3, NTEP III 5M |
| Load Cell | SLB415 |
| Accuracy | Standard |
| Environment / Material | Normal / Carbon Steel |
| Protection Rating | IP68 NEMA 6 |
| Hazardous Approval | ATEX, FM |
| Criticality | Standard |
| Cable | 5 m |
