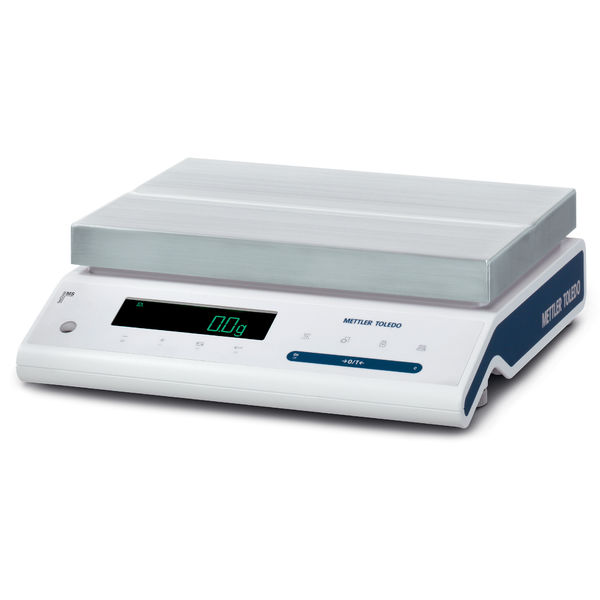

Tough Performers Built to Last. Large precision balance for your heavy loads: 32200 g capacity, 0.1 g readability, large platform, strong overload protection, external adjustment, chemical resistance
The tough metal housing and extreme overload protection for over 100 kg both safeguard your balance when working with heavy loads.
High-performance Weighing Cell
The MonoBloc high-performance weighing cell guarantees a long service life. Its extreme ruggedness is ideal for heavy duty applications.
3 programmable SmartKeys provide direct access to applications. With large 18 mm tall digits, the high-contrast display is clearly legible even in poor lighting.
|Maximum Capacity||32,200 g|
|Interfaces||RS232 and USB|
|Legal for Trade||Yes|
|Repeatability (typical)||0.07 g|
|Minimum Weight (U=1%, k=2), typical||14 g|
|Settling Time||2 s|
|Repeatability (Test Weight)||0.1 g (10,000 g)|
|Weighing Pan Dimensions (WxD)||245 mm x 351 mm|
|Minimum Weight (USP, 0.1%, typical)||140 g|
|Linearity ±||0.3 g|
|Dimensions (DxHxW)||346 mm x 118 mm x 363 mm|
|Linearity, typically||0.06 g|
|Power||AC Power supply|
|Temperature accuracy (±)||5 ppm/°C|
Multiple interfaces for easy integration
Enjoy seamless processes. Connect a printer, barcode reader or even a PC via USB or RS232. Or connect wirelessly with the Bluetooth option.
Chemical resistance ensures longevity
The weighing pan and balance housing are resistant to the harshest of chemicals, even acetone, and help ensure a long lifetime for the balance.
Clever design details help to simplify tasks
For example, the groove in the top of the weighing pan allows cylindrical samples to be placed directly on the balance without a container.
