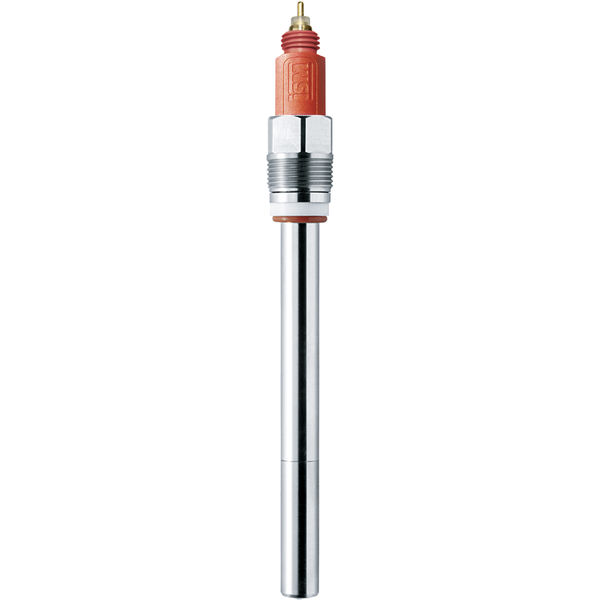

O2 Sensor InPro6950iG/12/220

Name: O2 Sensor InPro6950iG/12/220
Brand: Mettler Toledo

The InPro 6950iG/12/220 is an amperometric gas-phase oxygen sensor designed for trace oxygen measurement in CO2 recovery in breweries. This sensor uses Intelligent Sensor Management (ISM) diagnostics to reduce maintenance and downtime.

Material No.: 52206444

Accurate Trace Oxygen Measurement

The InPro 6950iG/12/220 provides an accuracy of ±5 ppm in CO2 recovery applications in breweries, where trace level accuracy is critical.

Save Money with CO2 Recovery

Using the InPro 6950iG/12/220 helps measure and capture CO2 from fermentation so you can reduce CO2 purchases for carbonation.

Real-Time Sensor Performance Monitoring

The InPro 6950iG/12/220 uses ISM technology to provide advanced analytics of sensor health, calibration needs, and remaining membrane lifetime.

Accurate at Low Oxygen Concentrations

The InPro 6950iG/12/220 offers reliable measurement between 5 and 50,000 ppm oxygen at an accuracy of ±5 ppm. It gives you the low concentration measurements you need during CO2 recovery and separation to save you costs on CO2 purchases.

Fast Sensor Replacement for More Uptime

The InPro 6950iG/12/220 offers an easy-to-change membrane body and ISM Plug and Measure technology. Plug and Measure allows a sensor to be polarized and calibrated away from the process under lab conditions, and then inserted directly into the process.

Meets Your Installation Needs

The InPro 6950iG/12/220 offers a 220 mm length suitable for medium to long length installations. The membrane body includes a silicone O-ring and 316L stainless steel wetted parts, making it appropriate for CO2 recovery in the brewery industry.

Plan Maintenance with ISM Diagnostics

ISM technology in the InPro 6950iG/12/220 monitors sensor stress to provide a prediction for upcoming calibration needs. It also tracks the electrolyte level to identify evaporation and leakage, and informs you when refilling is required.

Specifications - O2 Sensor InPro6950iG/12/220

Measurement Parameter	Gas-Phase Oxygen
Measurement Technology	Amperometric Clark Electrode
Measurement Range	6 ppm - 50000ppm
Accuracy	≤ ± [1% +5 ppm]
Response Time	T90 ≤ 30s (at 25 °C / 77 °F)
Primary Media/Application	Chemical Processes Food/Beverage Production
ISM (Digital) or Analog	ISM (Digital)
Cable Connector	K8S
Sensor Length	220 mm
Process Connection	Pg 13.5
Connector Design	Pg 13.9
O-Ring Material	Silicone
Sensor Diameter	12 mm
Surface Roughness of Wetted Parts	N5/Ra 16 (Ra=0.4mm/16min)
Wetted Materials	316L Stainless Steel
Wetted membrane material	PTFE
Model Family	InPro6950iG
Detection limit	5 ppm
Detection limit	5 ppm
Sensor signal in air at 25 °C (77 °F)	2500...6000 nA
Residual signal in oxygen free media	<0.025 % of signal in ambient air
Temperature compensation	Automatic
Measuring Temp. Range	32 °F – 104 °F (0 °C – 40 °C)
Operating Pressure (Bar)	0.200 bar–9.000 bar
Operating Pressure (PSI)	2.9 to 130 psi absolute
Mechanical Temp. Range	23 °F – 249.8 °F (-5 °C – 121 °C)
Design pressure (bar)	maximum 12 bar
Design Pressure (PSI)	maximum 174 psi absolute
Hazardous Area Approvals	ATEX: Ex ia IIC T6 / T5 / T4 / T3 Ga / Gb, Ex ia IIIC T69 °C / T81 °C / T109 °C / T161 °C Da / Db. FM: IS Cl. I, II, III, Div 1, GR ABCDEFG / T6 *
Hygienic/Biocompatibility Approvals	EHEDG, FDA/USP Class VI
Other certificates	METTLER TOLEDO Quality Certificate, Material certificate 3.1, N5/Ra 17
Operating Range	5 ppm – 50,000 ppm
Mechanical Temperature Resistance (Celsius)	-5 °C – 121 °C
Connection	K8S ISM
Measured Pressure Resistance	0.2 bar – 9 bar
Mechanical Temperature Resistance (Fahrenheit)	23 °F – 249.8 °F

KALREZ is a registered trademark of E. I. Du Pont de Nemours and Company Corporation

Material No.: 52300383
