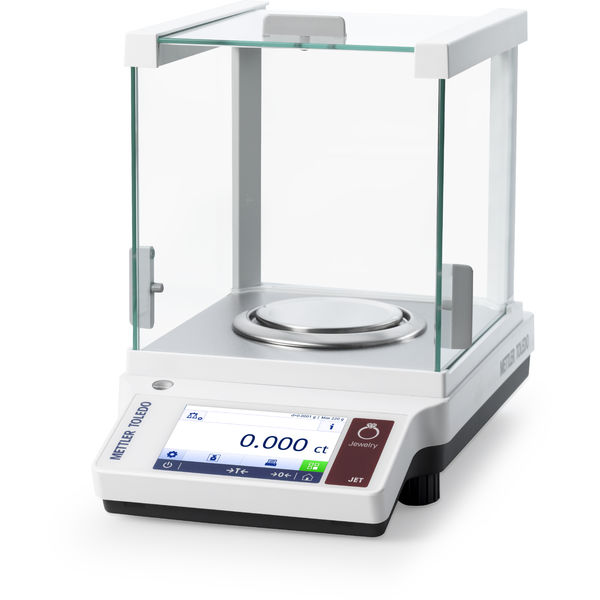

Carat Balance JET1103C/00

Smart Features.Accurate and reliable for trusted jewelry weighing. 1100 ct/220 g capacity, 0.001 ct/0.1 mg readability, 4.5'' color touchscreen, FACT fully automatic internal adjustment, 3 interfaces, 8 built-in applications, overload protection, metal base

Designed to Perform

Advanced weighing technologies, solid construction, and special design features deliver the accuracy you need for weighing jewelry and precious metals.

Intuitive Touch Screen Operation

The large color touchscreen is easy to read, even under the dazzling glare of shop lights, while the user interface is simple for anyone to use.

Automatic Performance Testing

JET balances use internal weights to automatically test and adjust the balance, helping to ensure that weighing performance remains true.

Material No.: 30524637

Call for Quote

Features

Easy Device Connection

Connect a barcode reader, printer, Bluetooth adapter, or even a PC for easy upload and transfer of your weighing data. Conveniently, you can even run a printer and auxiliary display at the same time - just plug them in and you're ready to go.

Built to Last

You can be assured of a long balance lifetime thanks to the robust, high-quality construction and overload protection.

View 2 Weight Units at the Same Time

JET balances have a unique feature that enables you to show a primary and secondary weight unit simultaneously. For instance, show the weight in both carats and grams. 16 units are available to choose from.

Guided Applications

Built-in applications, including density and totalization, simplify your daily jewelry weighing tasks. Instructions are provided on the touchscreen display and results are calculated automatically.

Simple Density Determination

Convert your balance for density determination by installing a density kit in just a few simple steps. The built-in density application provides step-by-step instructions and takes care of all calculations to help you accurately establish the purity of gold.

Weigh Big Items Easily

The generous weighing pan offers ample space for big items and containers while the hook on the base is perfect for both weighing and determining the density of larger items below the balance.

Legal for Trade

All JET balances are available as Legal for Trade versions suitable for most countries. Please contact us for more details.

Specifications

Specifications - Carat Balance JET1103C/00

Maximum Capacity
1,100 ct/220 g
Readability
0.001 ct
0.1 mg
Repeatability, typical
0.08 mg
Minimum Weight (U=1%, k=2), typical
16 mg
Adjustment
Internal / FACT
Settling Time
2 s
Legal for Trade
No
Balance Model (Carat/Gold)
Carat
Interfaces
RS232
USB Device
USB Host
Display
4.5" color TFT touchscreen
Weighing Pan Diameter
90 mm
Repeatability, limit
0.1 mg
Dimensions (HxWxD)
279 mm x 210 mm x 344 mm
Housing
Die-cast aluminum, ABS
Product Line
JET

Documentation

Manuals

User Manual: Jewelry Balances JET
Easy reference guide to help you quickly set-up and start using your balance.

Datasheets

Datasheet : JET Gold and Carat Balances
Download this datasheet to learn more about specifications and accessories of JET Gold and Carat Balances.

Technical Specifications

Jewelry Density Table
Jewelry Density Table (pdf - 102 KB)
Density Table for precious metals for jewelry and metals used as alloys

Accessories

CarePac®

CarePac OIML 10g/200g F2 Cal
CarePac® Small 200g F2 / 10g F2 inlcuding accessories for handling and cleaning and a calibration certificate

Material No.: 30550614

CPS,200G,10G, ASTM,1,1,C
CarePac® small 200g /10g ASTM 1 class, including accessories for handling and cleaning and a calibration certificate

Material No.: 11123101

Density Kits and Accessories

Density Kit for MS, ML, ME, JET, and JE

Material No.: 30535760

Hands-free Accessories, Stands & Displays & Data Readers

Instrument protection

Protective cover for balance platform

Material No.: 30241549

Material No.: 30029050

Coated, steel cord with a detachable lock and T-bar mechanism at one end and a loop at the other; includes two keys

Material No.: 11600361

Weighing Pans

Material No.: 12102565

Scoop, PAJ603

Material No.: 12102645

Scoop, PAJ1003

Material No.: 12102646

Scoop, PAJ2003

Material No.: 12102647

Consumables

Software

EasyDirect Balance Software

Collect weighing data from up to 3 Advanced and Standard level balances via Ethernet or RS232 interface on one PC. Easily review results, generate reports, and export data in various formats.

Material No.: 30539323

Collect weighing data from up to 10 Advanced and Standard level balances via Ethernet or RS232 interface on one PC. Easily review results, generate reports, and export data in various formats.

Material No.: 30540473
