Model PFD774-G1200 - Overview - METTLER TOLEDO

Model PFD774-G1200

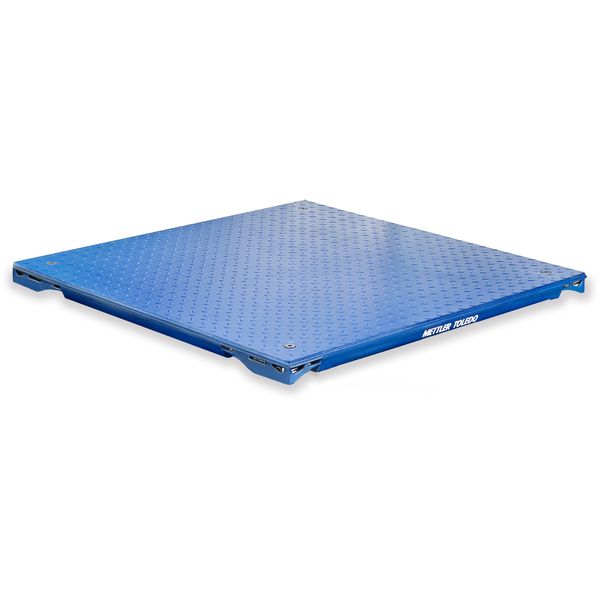

True Performance, Every Time!.PowerDeck™ PFD774 is a variable floor scale between 300kg 1.0m x 1.0m and 12 tons 2m x 2,5m. The floor scale is up to 2x10000e accuracy in market.

Real-Time Operator Guidance

Increase productivity by alerting operators for optimal placement of goods on the scale to guarantee repeatability. Easy, error-free operation.

Rugged and Precise

Increase yields in harsh environments. Select resolutions from 3000e up to 60,000d. The smart system monitors and compensates to ensure accuracy.

Visibility through Diagnostics

Protect your investment with real-time monitoring. Detect and track shock and overloads. Alerts prevent potential failures before they happen.

Specifications - Model PFD774-G1200
Maximum Capacity
1,200 kg
20 g
Readability (Certified)
200 g
20 g
Platform Size (LxWxH)
2,000 mm x 1,500 mm x 78 mm
Mild Steel
Protection Rating
IP68; IP69k
3 m
Hazardous Approval
Scale Interface
Repeatability (typical)
20 g
Repeatability (sd)
20 g
Wet & Harsh Wet (>/=IP66)
Legal for Trade
Linearity, typically
50 g
Dimensions/Platform Size
>1,501 mm; >60"
Platform Type
Floor scale
Hygenic Design
Material Number(s)



PowerDeck™ Product Brochure
Floor scales are an integral part of your business, but utilizing technology that is over 50 years old means they often are a big source of headaches...


PowerDeck™ Datasheet
Only PowerDeck™ continuously monitors every component and overall status of the scale. Operators are immediately alerted to any deviations, meaning yo...



Get Your Quote
Model PFD774-G1200
Hazardous Area
FM Approved
