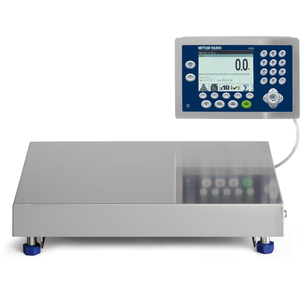

ICS689g-A3
Excellence Results.
Efficient weighing procedures
An optimal combination between terminal and weighing platform (t-, f- or c-version) leads to less production failure and speeds up your productivity.
Track and trace your results
Cover all requirements of your customer/regulatory body - possible with our user management, alibi memory, routine test and calibration log feature.
Ergonomic design for operator comfort
All you need for Over/Under checkweighing. The colorWeight function® improves your throughput. Fast and comfortable changing of Over/Under parameters.
Product Family:bench-scale0003000300020002
Maximum Capacity:3 kgMaximum Capacity:3 kgReadability:0.1 gReadability:0.1 gPlatform Size (LxWxH):9.5 in x 11.8 in x 3.7 in (240 mm x 300 mm x 95 mm)Platform Size (LxWxH):9.5 in x 11.8 in x 3.7 in (240 mm x 300 mm x 95 mm)Interfaces:RS232Interfaces:RS232Readability (Certified):1 gReadability (Certified):1 gInterfaces:Serial; Ethernet; USB; WLAN; Discrete I/OInterfaces:SerialInterfaces:EthernetInterfaces:USBInterfaces:WLANInterfaces:Discrete I/OApplications:Counting; Dynamic weighing; Formulation; Over Under Checkweighing; Pick&Pack; Simple WeighingApplications:CountingApplications:Dynamic weighingApplications:FormulationApplications:Over Under CheckweighingApplications:Pick&PackApplications:Simple WeighingDimensions/Platform Size:</=400 mm; from 6.3" to 15.7"Dimensions/Platform Size:</=400 mmDimensions/Platform Size:from 6.3" to 15.7"Environment:Wet & Harsh Wet (>/=IP66)Environment:Wet & Harsh Wet (>/=IP66)Legal for Trade:OIMLLegal for Trade:OIMLHygenic Design:YesHygenic Design:Yes
Specifications - ICS689g-A3
| Maximum Capacity | 3 kg |
| Readability | 0.1 g |
| Repeatability (sd) | 0.09 g |
| Platform Size (LxWxH) | 9.5 in x 11.8 in x 3.7 in (240 mm x 300 mm x 95 mm) |
| Material | Stainless Steel V2A (AISI 304) |
| Protection Rating | IP68; IP69k |
| Display | Color TFT screen |
| Interfaces | RS232 |
| Readability (Certified) | 1 g |
| Housing | Stainless Steel V2A (AISI 304) |
| Repeatability | 0.1 g |
| Repeatability (typical) | 0.09 g |
| Application Software | Counting; Dynamic Weighing; Formulation; Over Under Checkweighing; Pick&Pack; Simple weighing |
| Hazardous Approval | No |
| Applications | Counting; Dynamic weighing; Formulation; Over Under Checkweighing; Pick&Pack; Simple Weighing |
| Data Interface | Ethernet; Serial; USB; WLAN |
| Environment | Wet & Harsh Wet (>/=IP66) |
| Legal for Trade | OIML |
| Interfaces (Optional) | Discrete I/O; Ethernet; RS422; RS485; USB; WLAN |
| Scale Interface | Analog |
| Voltage | AC Version; Battery Version |
| Hygenic Design | Yes |
| Platform Type | Bench Scale |
| Material Number(s) | 22201268 |
