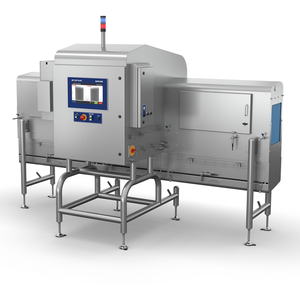

X37 Series – X3730

Split Beam X-ray Solution.The X3730 X-ray system offers outstanding detection sensitivity in cans and glass containers, utilizing a split beam X-ray to expose physical contaminants in the entire container.

Offering High Versatility of Detection

The X3730 provides a 0.8 mm diode size and a choice of generator power options, ensuring outstanding detection sensitivity across the whole container.

Upholding Brand Integrity

Our proprietary software, ContamPlusTM, conducts a full range of integrity checks and removes sub-standard products from the production line.

Protecting Products at High Speeds

The X3730 is capable of inspecting and rejecting up to 1,000 containers per minute, depending on your application.

Specifications - X37 Series – X3730
Brand Protection
Outstanding sensitivity of metal, glass, mineral stone, calcified bone and high density rubbers
Compliance
Support FSMA and all GFSI codes including BRC & IFS
Ease of Use
High performance x-ray software can reduce the need for manual adjustments and the potential for human programming errors
Increased Productivity
World class reliability and OEE reporting
Conveyor Speed (dependent on product dimensions)
10 - 140 m/min for 420W generator; 10 - 60 m/min for 100W generator
X-ray Detector Width and Diode Size
0.8mm diode size
Industry
Personal Care; Pet Food; Pharma; Beverage; Food; Nutraceuticals
Number of Lanes
Single lane
X-ray Generator
100W (84kV, 1.2mA Glass or optional Beryllium Tube); 420W (84kV, 5.0 mA Glass or optional Beryllium Tube)
X-ray Beams
Split beam
X-ray Emissions
< 1uSv/hr
Reject Type
Pusher or airblast options
Cooling Method
100W - Air Conditioner; 420W - Air Conditioner & Radiator Pump
Operating Temperature
5 °C ; 40 °C
Power Supply
208 - 240 Vac, 1 phase, 50-60 Hz, 10 A max 100 - 120 Vac, 1 phase, 50-60 Hz, 16 A max
HMI
15.6” LED Touchscreen display (16:9 aspect ratio)
IP rating
IP65 as Standard; IP69 available
Product Type(s)
Packaged
Packaging Material
Metal Can; Metalized Film; Glass; Cardboard; Plastic
Throughput Rate (dependent on product dimensions)
Up to 1000 ppm for 420W generator; Up to 800 ppm for 100W generator
Material Number(s)
30541146
Datasheets

Safeguarding Product Rejection

A range of optional reject mechanisms are available to ensure the quick, safe removal of your faulty products, with a low false reject rate.

Achieving Outstanding Detection

The X3730’s horizontal split beam technology increases detection sensitivity by imaging every package twice in one pass. As each package is inspected from two different angles, blind spots are minimized, thereby increasing the probability of detection.

Proving Due Diligence and Traceability

For QA purposes and to assist in Overall Equipment Effectiveness (OEE) you can retrieve inspection statistics and X-ray images through diverse connectivity options in real time.

5-Year Generator Warranty

Minimize your downtime and protect the most valuable and expensive part of your inspection system, the x-ray generator, for 5 years when you purchase it with a Standard or Comprehensive Care Package.

Global Service Support

A global network of service experts provide fast remote and on-site support. Our comprehensive service offering allows you to achieve regulatory compliance, high performance, and maximum uptime throughout the life cycle of your product inspection equipment.

Enhancing Production Data Visibility

Ensure the highest levels of regulatory compliance through real-time data collection. ProdX, our PC-based software, constantly monitors and fully documents all production parameters, quality incidents, user interactions and performance verification routines.
