Book MeetingOffering High Versatility of Detection

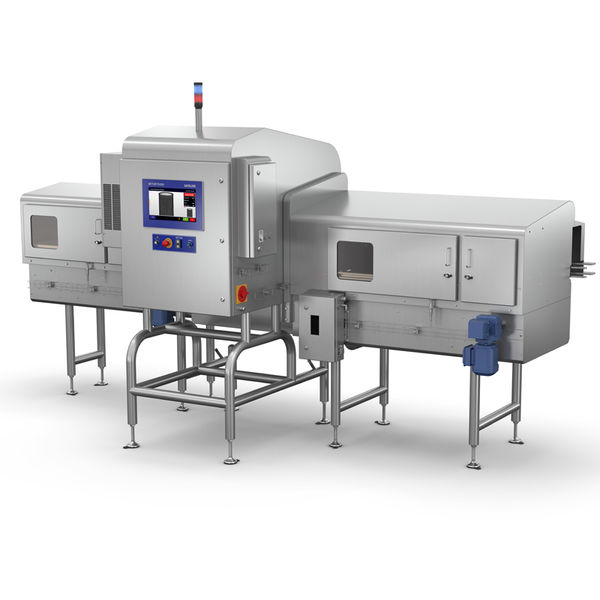

The X3725 reliably inspects and rejects non-conforming products that utilize our unique proprietary X-ray software ContamPlusTM.
Optimizing Detection Capabilities
Full-length, product-specific guide rails guarantee consistent product presentation into the X-ray system, thus ensuring optimal detection.
Improving OEE
Production uptime is enhanced through connectivity options that allow interaction with the X3725 and access to statistics, images and reports.
Material No.: 30541145
| Brand Protection | Outstanding sensitivity of metal, glass, mineral stone, calcified bone and high density rubbers |
| Compliance | Support FSMA and all GFSI codes including BRC & IFS |
| Ease of Use | High performance x-ray software can reduce the need for manual adjustments and the potential for human programming errors |
| Increased Productivity | World class reliability and OEE reporting |
| Conveyor Speed (dependent on product dimensions) | 10 - 100 m/min |
| X-ray Detector Width and Diode Size | 0.8mm diode size |
| Industry | Personal Care Pet Food Pharma Beverage Food Nutraceuticals |
| Number of Lanes | Single lane |
| X-ray Generator | 420W (84kV, 5.0mA Glass or optional Beryllium Tube) |
| X-ray Beams | Single beam |
| X-ray Emissions | < 1uSv/hr |
| Reject Type | Short Stroke Pusher or airblast options |
| Cooling Method | Air Conditioner & Radiator Pump |
| Operating Temperature | 5 °C - 40 °C |
| Power Supply | 208 - 240 Vac, 1 phase, 50-60 Hz, 10 A max 100 - 120 Vac, 1 phase, 50-60 Hz, 16 A max |
| HMI | 15.6” LED Touchscreen display (16:9 aspect ratio) |
| IP rating | IP65 as Standard IP69 available |
| Product Type(s) | Tall Rigid Containers |
| Packaging Material | Metal Can Metalized Film Cardboard Plastic |
| Throughput Rate (dependent on product dimensions) | Up to 800 ppm |
Protecting Products at High Speeds
The X3725 is capable of inspecting tall, rigid, and flexible packaging at up to 800 products per minute for physical contaminants, plus product and packaging integrity.
Complying with Industry Standards
The X3725 offers full compliance with a range of international safety standards, including ISO, while offering enhanced user functionality.
Safeguarding Product Rejection
At high line speeds, the X3725 accurately and securely forwards faulty products to a driven reject table, which then houses them in a lockable location without damaging the packaging. This allows for further investigation and potential reworks.
5-Year Generator Warranty
Minimize your downtime and protect the most valuable and expensive part of your inspection system, the x-ray generator, for 5 years when you purchase it with a Standard or Comprehensive Care Package.
Global Service Support
A global network of service experts provide fast remote and on-site support. Our comprehensive service offering allows you to achieve regulatory compliance, high performance, and maximum uptime throughout the life cycle of your product inspection equipment.
Enhancing Production Data Visibility
Ensure the highest levels of regulatory compliance through real-time data collection. ProdX, our PC-based software, constantly monitors and fully documents all production parameters, quality incidents, user interactions and performance verification routines.
