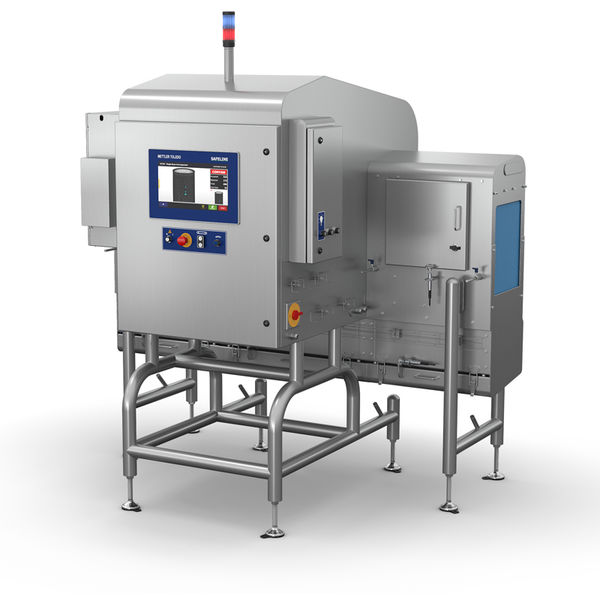

X37 Series – X3720
Adaptable High-speed Solution.A flexible X-ray inspection solution designed to inspect a diverse range of applications at high line speeds, in packaging formats such as metal or composite cans, plastic containers and doypacks.
Offering High Versatility of Detection
The X3720 offers a 0.8 mm diode size and a choice of generator options, ensuring reliable and outstanding detection sensitivity for all applications.
Reducing TCO with Low Power
The X3720 operates with low level X-ray power, reducing overall power consumption and contributing to lower running costs.
Safeguarding High-speed Rejection
A variety of optional reject mechanisms are available to ensure the quick and safe removal of your faulty products at line speeds of up to 1,000 ppm.
Material No.: 30541144
| Brand Protection||Outstanding sensitivity of metal, glass, mineral stone, calcified bone and high density rubbers|
| Compliance||Support FSMA and all GFSI codes including BRC & IFS|
| Ease of Use||High performance x-ray software can reduce the need for manual adjustments and the potential for human programming errors|
| Increased Productivity||World class reliability and OEE reporting|
| Conveyor Speed (dependent on product dimensions)||10 - 100 m/min for 420W generator; 10 - 60 m/min for 100W generator|
| X-ray Detector Width and Diode Size||0.8mm diode size|
| Industry||Personal Care; Pet Food; Pharma; Beverage; Food; Nutraceuticals|
| Number of Lanes||Single lane|
| X-ray Generator||100W (84kV, 1.2mA Glass or optional Beryllium Tube); 420W (84kV, 5.0mA Glass or optional Beryllium Tube)|
| X-ray Beams||Single beam|
| X-ray Emissions||< 1uSv/hr|
| Reject Type||Pusher or airblast options|
| Cooling Method||Air Conditioner|
| Operating Temperature||5 °C - 40 °C|
| Power Supply||100 - 120 Vac, 1 phase, 50-60 Hz, 16 A max; 208 - 240 Vac, 1 phase, 50-60 Hz, 10 A max|
| HMI||15.6” LED Touchscreen display (16:9 aspect ratio)|
| IP rating||IP65 as Standard; IP69 available|
| Product Type(s)||Packaged (Height is more than width)|
| Packaging Material||Metal Can; Metalized Film; Cardboard; Plastic|
| Throughput Rate (dependent on product dimensions)||Up to 1000 ppm for 420W generator; Up to 800 ppm for 100W generator|
| Material Number(s)||30541144|
Upholding Brand Integrity
Our proprietary X-ray software, ContamPlusTM, simultaneously inspects products for physical contaminants as well as performing product integrity checks.
Achieving Hygiene Compliance
Following GMP, NFS and EHEDG principles (IP65 as standard / optional IP69 upgrade), the X3720 offers class-leading hygienic design.
Safeguarding Product Rejection
The lockable reject bin on the X3720 ensures that only authorized personnel have access to rejected products. The large view window facilitates easier reject set up, ensuring maximum uptime.
5-Year Generator Warranty
Minimize your downtime and protect the most valuable and expensive part of your inspection system, the x-ray generator, for 5 years when you purchase it with a Standard or Comprehensive Care Package.
Global Service Support
A global network of service experts provide fast remote and on-site support. Our comprehensive service offering allows you to achieve regulatory compliance, high performance, and maximum uptime throughout the life cycle of your product inspection equipment.
Enhancing Production Data Visibility
Ensure the highest levels of regulatory compliance through real-time data collection. ProdX, our PC-based software, constantly monitors and fully documents all production parameters, quality incidents, user interactions and performance verification routines.
