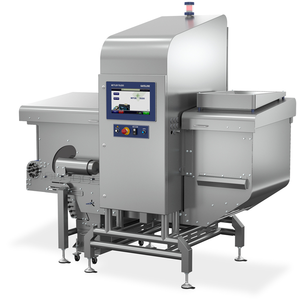

X36 Series Bulk Flow
Innovative Bulk Solution.Designed for loose-flow bulk-food products, the X36 Series Bulk X-ray system offers contaminant detection prior to further value being added to your product, and is able to inspect up to 14,000 kg of product per hour.
Minimizing Product Waste
A multi-lane scoop reject option is available for the rejection of small amounts of product; this minimizes product waste and saves costs.
Reaching Outstanding Detection Levels
Your brand reputation is maintained at all times, as our unique ContamPlusTM X-ray inspection algorithms optimize detection levels with each process.
Complying with Hygiene Standards
The class-leading hygienic design follows GMP, NFS and EHEDG principles, with IP69 as the standard and an innovative design that offers full cleaning access.
| Brand Protection||Outstanding sensitivity of metal, glass, mineral stone, calcified bone and high density rubbers|
| Compliance||Support FSMA and all GFSI codes including BRC & IFS|
| Ease of Use||High performance x-ray software can reduce the need for manual adjustments and the potential for human programming errors|
| Increased Productivity||World class reliability and OEE reporting|
| X-ray Detector Width and Diode Size||600mm, 0.4mm or 0.8mm diode size|
| Industry||Pet Food; Pharma; Food|
| Throughput Rate (dependent on product and layer thickness)||Up to 14,000 kg/ hr|
| X-ray Generator||100W (84kV, 1.2mA Beryllium Tube)|
| X-ray Beams||Single beam|
| X-ray Emissions||< 1uSv/hr|
| Reject Type||Three or six lane scoop|
| Cooling Method||IP69 Air Conditioner|
| Power Supply||208 - 240 Vac, 1 phase, 50 - 60 Hz, 10 A; 100 - 120 Vac, 1 phase, 50 - 60 Hz, 16 A|
| HMI||15” LED Touchscreen display (16:9 aspect ratio)|
| IP rating||IP69|
| Product Type(s)||Unpackaged|
| Conveyor Speed (dependent on product and layer thickness)||10-60 m/min|
| Belt Tracking||Automatic pneumatic tracking and tensioning|
| Operating Temperature (Celsius)||5 °C ; 40 °C|
| System Conveyor||FDA and EU food use approved TPU conveyor belt, 0.37kW motor unit|
| Material Number(s)||30541250|
The X36 Series Bulk's intuitive software monitors the system’s overall equipment effectiveness (OEE), providing you with relevant information so that you can make improvements to the machine.
Offering Application Versatility
The X36 Bulk Flow provides outstanding detection of contaminants in various applications including fresh, frozen or dried products; nuts, grains and pulses, extruded snacks, fruits, cereals, vegetables, seafood, minced meat, confectionery and pet foods.
Safeguarding Products At High Speeds
The X36 Series Bulk is capable of inspecting throughputs of up to 14,000 kg/hour, depending on product depth and density, ensuring food safety while maximizing line efficiency.
Proving Due Diligence and Traceability
Multiple connectivity options enable the X36 Series Bulk to be connected to a manufacturer's network, giving only authorized personnel the ability to analyze inspection and performance data from a remote location.
5-Year Generator Warranty
Minimize your downtime and protect the most valuable and expensive part of your inspection system, the x-ray generator, for 5 years when you purchase it with a Standard or Comprehensive Care Package.
Global Service Support
A global network of service experts provide fast remote and on-site support. Our comprehensive service offering allows you to achieve regulatory compliance, high performance, and maximum uptime throughout the life cycle of your product inspection equipment.
Enhancing Production Data Visibility
Ensure the highest levels of regulatory compliance through real-time data collection. ProdX, our PC-based software, constantly monitors and fully documents all production parameters, quality incidents, user interactions and performance verification routines.
