Gravity Fall Profile Metal Detector - Overview - METTLER TOLEDO

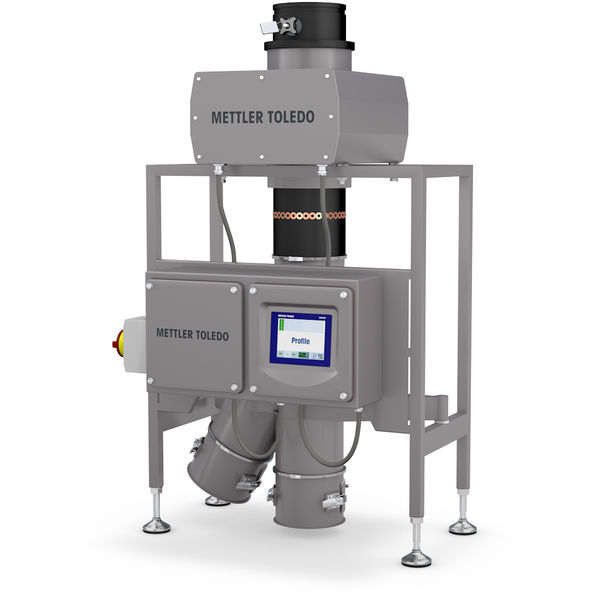

Gravity Fall Profile Metal Detector

Inspection of powders/granules.Gravity fall metal detector controlled from a full color touchscreen that supports ATEX/IECEx compliance for explosive atmospheres. For powders and granular products inspection.

Maximum Sensitivity and Performance

Multiple ultra high tuned frequencies with enhanced noise and vibration immunity deliver exceptional sensitivity to consistently detect more metal

Simple to Use and Robust Detector Design

Proven reliability. Intuitive, easy to use icon driven touchscreen with a choice of fully automatic reject device, optimized for each application

Maximum Uptime

Condition monitoring and Reduced Test mode support maximum performance over time and allow a reduction in scheduled performance monitoring tests

Material No.: 28015469

Call for Quote
Specifications - Gravity Fall Profile Metal Detector
Brand Protection
Maximum sensitivity to Fe, Non-Fe & S/S metals
Compliance
Essential (GFSI/FSMA)
Higher Level (Retailer)
Increased Productivity
World class reliability and OEE reporting
Cost Reduction
Stable operation with zero false rejects (FRR)
Ease of Use
Single setting mode via auto product clustering
IP rating
IP65
IP66
Future Proof
Upgradable design to meet future requirements
HMI
5.7" QVGA color touchscreen display
Unparalleled Support
Global service capability and modular spare parts packs
Product Flow
Freefall/Gravity Fed
Product Format
Powders/Granules
Assured Compliance
Supports FSMA & all GFSI codes incl. BRCGS & IFS
Detection Capability
AdvancedLine
Frequencies
Ultra High Tuned
Product Characteristic
Dry/Deep Frozen
Industry
Food
Other
Total Cost of Ownership
Long term reliability with zero false rejects
Environmental Robustness
Scalable options to suit the harshest environments
Finish
Bead Blast SS
Painted AL
HMI Display
145mm (5.7 inch) color QVGA touchscreen display
Frequency
2 Frequencies up to 800kHz
Material Number(s)
28015469

Easy Integration

Zero Metal Free Zone (ZMFZ) technology enables it to be installed close to other metal structures without compromising sensitivity performance.

Optimized Configurations

Available in a choice of finishes including painted for use in dry, non-aggressive environments and stainless steel for more demanding applications.

Comprehensive Rejection Options

Choice of open diverter, Y-valve, or Sealtite reject options to suit a wide range of applications.

Reliable, precise performance

Proven detector technology delivers excellent sensitivity and stability with optimised electronic and mechanical integration, for enhanced compliance.

Designed for efficiency

Available with Reduced Test Mode which supports a significant reduction in routine testing without increasing risk and increases operator efficiency.

Optional Test Kits

ATS and integrated test facility options provide an efficient means of testing metal detector functionality and reject diverter operation.

Lifetime Service Support

METTLER TOLEDO Global Service capability can support you with correct installation, set-up, and maintainance, to maximize your return on investment.
