CS3600 Checkweigher - Overview - METTLER TOLEDO

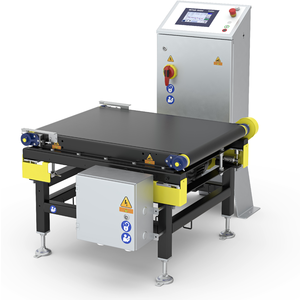

CS3600 Checkweigher

Robust, Dependable Accuracy.This robust caseweigher delivers end of line completeness checking and 100 percent weight monitoring of single large products in challenging working environments and can optionally integrate a metal detector for use as a Critical Control Point.

Rugged Construction for Heavy Loads

An economical and efficient NTEP-approved solution ideal for manufacturers with high load application requirements in dry and washdown environments.

Reduced Maintenance Downtime

Easy access to all major components for fast cleaning and maintenance. The belt design allows for quick and easy tracking, tensioning, and change out.

Optional Metal Detector Integration

Ideal for use as a Critical Control Point including separate rejects for contaminated or off-weight products and conveyor shut-down option.

Material No.: 66116270

Call for Quote
Specifications - CS3600 Checkweigher
Throughput
150 ppm
HMI
12"
7"
Hygienic Requirement
Wipe Down (<IP54)
Low Pressure (IP65)
Product Width
300 – 700 mm
Maximum Product Weight
100 kg
Combination Options
Metal Detection
Transport Height
22-40 in (559-1016 mm)
Industry
Pharma
Food
Other
IP Rating
IP54 (optional IP65)
IP 65
Production Environment
Dusty
Wet
Dry
Accuracy
Weighing Technology (Load Cell)
Strain Gauge
Customization Options
Bespoke handling
Approval
Weights & measures design approval for official verification (MID certifiable)
Weighing Combinations
Contamination Detection
Material Number(s)
66116270

Maximum Performance

A conveyor speed of up to 300 ft/min (91.4 m/min), a weighing range up to 220 lbs (100 kg), and very high weighing accuracy positions the CS3600 PlusLine caseweigher at the forefront of heavy load checkweighing technology.

Data Collection to Support Compliance

More than ten data communication protocols including Ethernet, Fieldbus and OPC technologies to provide the fullest suite of data collection tools available. Supports Industry 4.0 integration projects.

Maximum Operator Accessibility

Systems are operated through a 7" or 12" multilingual touchscreen located in proximity to the machine or mounted in front of the conveyor for maximum operator accessibility.

Global Service Support

A global network of service experts provide fast remote and on-site support. Our comprehensive service offering allows you to achieve regulatory compliance, high performance, and maximum uptime throughout the life cycle of your product inspection equipment.
