Gold Balance JP16001G
High capacity balances built to last..Jewelry Balances
Perfect for Heavy Loads
JP balances are extremely solid and do not move when accidentally bumped or tilt when heavy items, such as bullion, are placed on the weighing pan.
Large Weighing Platform
The large weighing pan accommodates big items with ease. The high stability enables items such as gold bullion to be placed securely on the balance.
Easy to Read Display
The high contrast display has large bright numbers that are easy to read, even in challenging lighting conditions.
Material No.: 11143045
Features
Automatic Performance Testing
JP balances use internal weights to test and adjust the balance whenever a change in ambient temperature is detected. Your weighing results remain accurate and heavy external test weights are needed less often.
Weighing Hook
The hook on the base of the balance is perfect for weighing big items below the balance. In conjunction with the built-in application, this technique can also be used to determine the density of larger items of jewelry.
Tough and Durable
JP balances have a solid metal base and a stainless steel weighing platform. The high-quality materials and robust construction ensure accurate results and a long balance lifetime.
Easy Operation
All the basic functions you need are at your fingertips. The straightforward user interface makes it easy to access applications and settings.
Legal for Trade
All JP balances are available as Legal for Trade versions (OIML) suitable for most countries. Please contact us for more details.
Convenient Levelling
A level balance means accurate results. JE balances have two large levelling feet at the front for easy access, and the level bubble is conveniently located next to the display so you can check the level with just a quick glance.
Easy Device Connection
Simply plug in a printer to quickly record your weighing results, connect an auxiliary display so your customers can simultaneously see the weight result, or try a Bluetooth adapter for easy data upload and transfer.
Specifications
Specifications - Gold Balance JP16001G
| Maximum Capacity | 16,200 g |
| Readability | 0.1 g |
| Repeatability, typical | 0.07 g |
| Minimum Weight (U=1%, k=2), typical | 14 g |
| Adjustment | Internal / FACT |
| Settling Time | 1 s |
| Legal for Trade | No |
| Balance Model (Carat/Gold) | Gold |
| Interfaces | RS232 USB Device |
| Display | High contrast display HCD |
| Weighing Pan Dimensions (WxD) | 351 mm x 245 mm |
| Repeatability, limit | 0.1 g |
| Dimensions (HxWxD) | 118 mm x 363 mm x 346 mm |
| Housing | Die-cast aluminum |
| Product Line | JP-Large |
Documentation
Manuals
Full instructions and technical guidance for safe and correct usage of your balance.
Easy reference guide to help you quickly set-up and start using your balance.
Easy reference guide to help you quickly set-up and start using your balance.
Datasheets
Download this datasheet to learn more about specifications and accessories of JE and JP Gold and Carat Balances.
Technical Specifications
Jewelry Density Table (pdf - 102 KB)
Density Table for precious metals for jewelry and metals used as alloys
Accessories
EasyDirect Balance Software
Collect weighing data from up to 3 Advanced and Standard level balances via Ethernet or RS232 interface on one PC. Easily review results, generate reports, and export data in various formats.
Material No.: 30539323
Collect weighing data from up to 10 Advanced and Standard level balances via Ethernet or RS232 interface on one PC. Easily review results, generate reports, and export data in various formats.
Material No.: 30540473
Hands-free Accessories, Stands & Displays & Data Readers
Auxiliary display with large LCD backlit display, powered by the balance (RS232 interface)
Material No.: 12122380
Instrument protection
Coated, steel cord with a detachable lock and T-bar mechanism at one end and a loop at the other; includes two keys
Material No.: 11600361
Single Test Weights
Weight 500g F2 PL C E
Single F2 OIML class knob weight with adjusting cavity in a plastic box including a calibration certificate
Material No.: 30406432
Weight 10kg F2 PL C E
Single F2 OIML class knob weight with adjusting cavity in a plastic box including a calibration certificate
Material No.: 30406436

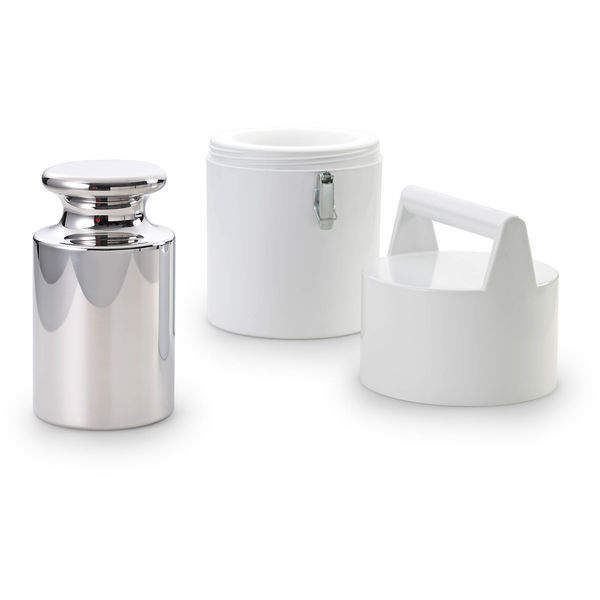

WEIGHT,10KG,ASTM,1,PCASE,CAL
Single ASTM 1 class knob weight in a plastic box including a calibration certificate
Material No.: 11123490

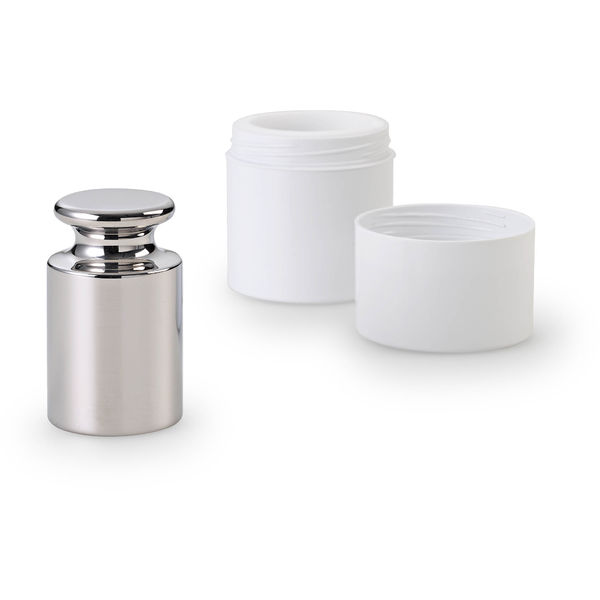

WEIGHT,500G,ASTM,1,PCASE,CAL
Single ASTM 1 class knob weight in a plastic box including a calibration certificate
Material No.: 11123486
Standard P-20 Printers
Dot matrix printer, RS232 interface, print speed 2.3 lines per second, date and time function, zero/tare key, statistics and totaling application
Material No.: 11124309
Consumables
Software
EasyDirect Balance Software
Collect weighing data from up to 3 Advanced and Standard level balances via Ethernet or RS232 interface on one PC. Easily review results, generate reports, and export data in various formats.
Material No.: 30539323
Collect weighing data from up to 10 Advanced and Standard level balances via Ethernet or RS232 interface on one PC. Easily review results, generate reports, and export data in various formats.
Material No.: 30540473
