Carat Balance JE1103CE
Everyday Weighing Essentials.All the basic functions you need for accurate jewelry weighing. 1100 ct/220 g capacity, 0.001 ct/0.1 mg readability, bright and clear backlit LCD, external adjustment, passcode protection, overload protection, metal base
Bright Display with Large Numbers
The bright, large numbers enable you to read weight values with ease. The angled display provides optimum readability in all lighting conditions.
Convenient Levelling
The two levelling feet and the level bubble are at the front, making it convenient to check the level and adjust if necessary.
Robust Construction
A solid metal base, stainless steel weighing platform and robust construction ensure accurate results and a long balance lifetime.
Material No.: 30291455
Features
Weighing Hook
The hook on the base of the balance is perfect for weighing big items below the balance. In conjunction with the built-in application, this technique can also be used to determine the density of larger items of jewelry.
High Stability for Fast Results
Thanks to the solid construction, JE balances sit securely on your countertop. The high stability ensures fast results and prevents the balance from moving if accidently bumped.
8 Applications
Simplify your daily tasks with the built-in weighing applications, including density, statistics, totalization and more.
16 Weight Units
16 different weighing units are available and you can switch between your two preferred weighing units with one click: ct, g, mg, kg, pound, ounce, troy ounce, grain, pennyweight, momme, mesghal, Hong Kong tael, Singapore tael, Taiwan tael, tola, baht.
Legal for Trade
All JE balances are available as Legal for Trade versions (OIML) suitable for most countries. Please contact us for more details.
Easy Device Connection
Simply plug in a printer to quickly record your weighing results, connect an auxiliary display so your customers can simultaneously see the weight result, or try a Bluetooth adapter for easy data upload and transfer.
Specifications
Specifications - Carat Balance JE1103CE
| Maximum Capacity | 1,100 ct/220 g |
| Readability | 0.001 ct 0.1 mg |
| Repeatability, typical | 0.08 mg |
| Minimum Weight (U=1%, k=2), typical | 0.016 g |
| Adjustment | External |
| Settling Time | 2 s |
| Legal for Trade | No |
| Connectivity | PC Printer Secondary Display Wireless Adapter |
| Balance Model (Carat/Gold) | Carat |
| Interfaces | RS232 |
| Display | LCD Backlit Display |
| Weighing Pan Diameter | 90 mm |
| Repeatability, limit | 0.1 mg |
| Dimensions (HxWxD) | 279 mm x 210 mm x 344 mm |
| Housing | Die-cast aluminum, ABS |
| Product Line | JE |
Documentation
Manuals
Full instructions and technical guidance for safe and correct usage of your balance.
Easy reference guide to help you quickly set-up and start using your balance.
Easy reference guide to help you quickly set-up and start using your balance.
Datasheets
Download this datasheet to learn more about specifications and accessories of JE and JP Gold and Carat Balances.
Technical Specifications
Jewelry Density Table (pdf - 102 KB)
Density Table for precious metals for jewelry and metals used as alloys
Accessories
CarePac®
CarePac OIML 10g/200g F2 Cal
CarePac® Small 200g F2 / 10g F2 inlcuding accessories for handling and cleaning and a calibration certificate
Material No.: 30550614
CPS,200G,10G, ASTM,1,1,C
CarePac® small 200g /10g ASTM 1 class, including accessories for handling and cleaning and a calibration certificate
Material No.: 11123101
Density Kits and Accessories
EasyDirect Balance Software
Collect weighing data from up to 3 Advanced and Standard level balances via Ethernet or RS232 interface on one PC. Easily review results, generate reports, and export data in various formats.
Material No.: 30539323
Hands-free Accessories, Stands & Displays & Data Readers
Auxiliary display with large LCD backlit display, powered by the balance (RS232 interface)
Material No.: 12122380
Instrument protection
Coated, steel cord with a detachable lock and T-bar mechanism at one end and a loop at the other; includes two keys
Material No.: 11600361
Portable Refractometer Accessories and Consumables
RS232 - USB converter cable to connect a balance (RS232) to a USB port
Material No.: 64088427
Standard P-20 Printers
Dot matrix printer, RS232 interface, print speed 2.3 lines per second, date and time function, zero/tare key, statistics and totaling application
Material No.: 11124324
Dot matrix printer, RS232 interface, print speed 2.3 lines per second, date and time function, zero/tare key, statistics and totaling application
Material No.: 11124309
Dot matrix printer, RS232 interface, print speed 2.3 lines per second, auto settings detection
Material No.: 30702967

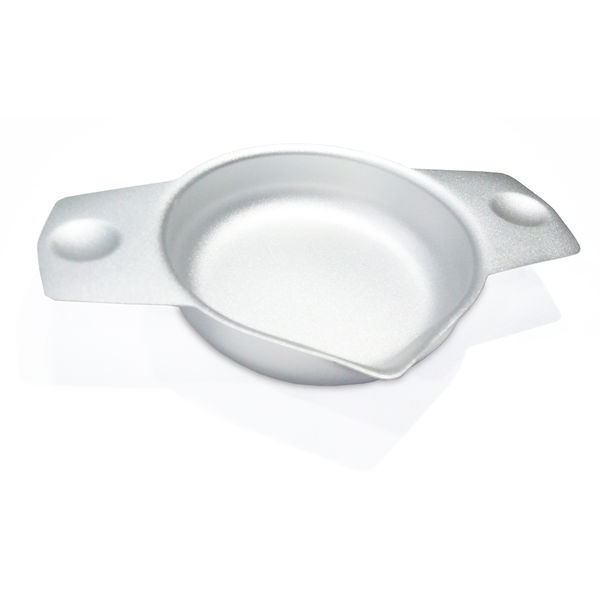

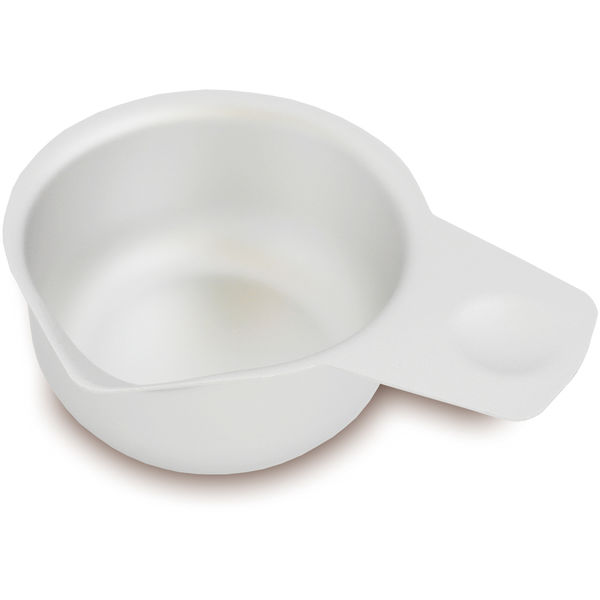

Weighing Pans
Consumables
Software
EasyDirect Balance Software
Collect weighing data from up to 3 Advanced and Standard level balances via Ethernet or RS232 interface on one PC. Easily review results, generate reports, and export data in various formats.
Material No.: 30539323
Collect weighing data from up to 10 Advanced and Standard level balances via Ethernet or RS232 interface on one PC. Easily review results, generate reports, and export data in various formats.
Material No.: 30540473
