Dropping Point System DP90

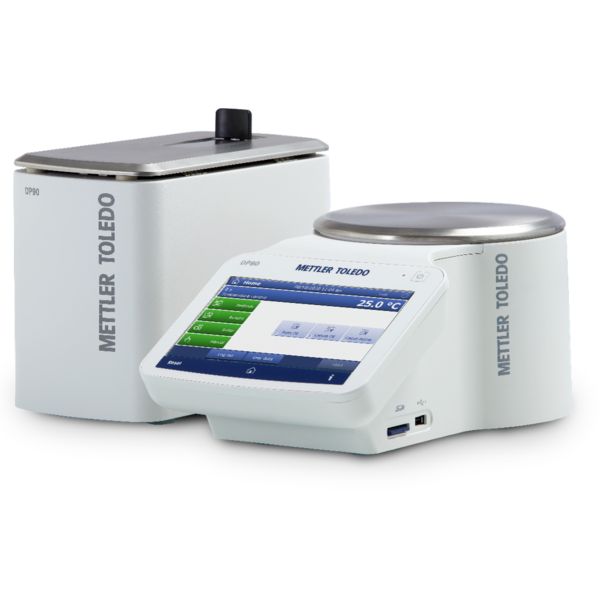

Sub-Zero Possibilities.The DP90 offers simultaneous dropping and softening point determination of two samples from –20°C to 400°C. It consists of a control unit and a separate measuring cell that can be placed in a refrigerator or deep freezer.

Simple One Click™ Operation

The One Click™ user interface enables users to start measurements with a single click of the button.

Trusted performance

With the visual camera observation and digital image analysis, highly accurate dropping/softening point temperatures are obtained fully automatically.

Determination at sub-ambient temperature

When placed in a refrigerator or freezer, the external cell allows reliable characterization of ointments, creams, and edible fats.

Material No.: 30578109

Call for Quote
Specifications - Dropping Point System DP90
Temp. Range
-20 – 400°C (external cooling required)
Number of One Clicks™
12 Per User
Application Type
Dropping Point
Softening Point
Number of Cups
User management
Password protection
Protection of Settings
Multiple Users
Data Export
to SD Card, USB Stick or PC
Heating Rate (/min)
0.1 °C – 20 °C
PDF Reports
Stored Results
Substances in database
color, 120 minutes
Max. number of methods
English, Chinese, German, Spanish, French, Italian, Portuguese, Russian, Japanese, Korean
Display / User interface
7" color display with touchscreen
Dimensions (Width x Height x Depth)
Measuring Cell 13 x 25 x 21 cm, Control Unit 19 x 35 x 23 cm
7 kg
Standards 1
DIN 51920
ASTM D3461
ISO 4625-2
ASTM D3104
ASTM D6090
ASTM D3954
AOCS Cc 18-80
Standard compliance

Comprehensive and intuitive operation

The large color display and touch screen with the intuitive One Click™ user interface minimizes training and operator influence. Quick familiarization is guaranteed with the common user interface for all Analytical Laboratory instruments.

Efficient analyses

Simultaneous measurement of two samples saves valuable time and effort. Short heating and cooling times allow more analyses to be performed in a shorter period of time.

Fast and accurate sample preparation

The accessory box contains all required tools for correct and quick sample preparation and handling. Disposable cups and glassware eliminate the need for tedious cleanup.

Complete results documentation

All results are securely archived and can be tracked at any time. Analysis data can be printed out, saved as a pdf file, or directly transferred to a PC.

Conformity with current standards

Operation according to standards of ASTM International, European Pharmacopeia and further standards makes it easier to compare measurement results.

User Management

Instrument settings can be personalized with shortcuts and the selected operator language. The user management system allows different levels of access to be defined, protecting critical data.


Product Brochures

Brochure – Dropping Point Excellence
With the innovative METTLER TOLEDO dropping point systems, you can determine dropping and softening points of pitch, asphalt, polymers, resins, waxes...


Datasheet – DP90 Dropping Point System
With DP90, dropping point and softening point determinations at sub-ambient temperatures are now possible.


Corded barcode reader for the reading of 1D / linear codes

Material No.: 21901297

Dot matrix printer, USB interface, print speed 2.3 lines per second, auto settings detection

Material No.: 30702998


Calibration Substances

High-purity reference substances, traceable to LGC standards, enable accurate temperature calibration and adjustment for Melting Point and Dropping Point Excellence instruments in the range of 40 - 360 °C.

Material No.: 51143095
