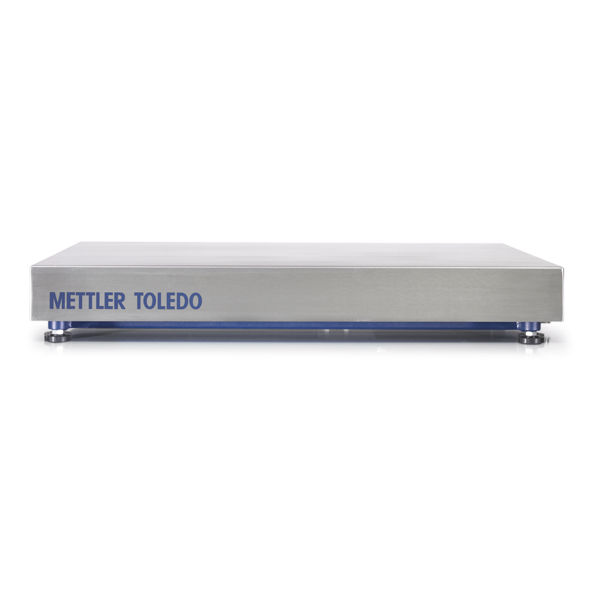

Weighing Platform PBD655-CC60 US
The Plug and Weigh Design.The PBD655 platform is a true digital, pre-calibrated device designed for simplicity. Plug the platform into a suitable terminal and start weighing.
Ready to Operate in Seconds
The PBD655 platform is a true digital, pre-calibrated device designed for simplicity. Plug the platform into a suitable terminal and start weighing.
For High Precision Applications
The extremely robust platform design features an approvable resolution of NTEP 10'000d for optimal weighing and counting precision.
Highly Durable
The load frame is powder-coated and the load plate consists of brushed stainless steel. This stands for high durability over a long period of time.
Material No.: 30024747
/content/us/en/home/products/Industrial_Weighing_Solutions/weighing-platforms/weighing-platform-pbd655-cc60-us-30024747.fb.1.c.11.html?abcl=2
Call for Quote Product Family:platform-scale00040053
Maximum Capacity:100 lb (60 kg)Maximum Capacity:100 lbMaximum Capacity:60 kgReadability:0.002 lb (1 g)Readability:0.002 lbReadability:1 gPlatform Size (LxHxW):23.6 in x 4.7 in x 31.5 in (600 mm x 120 mm x 800 mm)Platform Size (LxHxW):23.6 in x 4.7 in x 31.5 in (600 mm x 120 mm x 800 mm)Readability (Certified):0.01 lb (10 g)Readability (Certified):0.01 lb (10 g)Environment:Dusty & Light Wet (IP65)Environment:Dusty & Light Wet (IP65)Dimensions/Platform Size:from 19.8" to 31.5"; from 501 to 800 mmDimensions/Platform Size:from 19.8" to 31.5"Dimensions/Platform Size:from 501 to 800 mmLegal for Trade:NTEP; OIMLLegal for Trade:NTEPLegal for Trade:OIMLHazardous Area:Non-hazardous areaHazardous Area:Non-hazardous areaHygienic Design:NoHygienic Design:No
Specifications - Weighing Platform PBD655-CC60 US
| Maximum Capacity | 100 lb (60 kg) |
| Readability | 0.002 lb (1 g) |
| Repeatability(sd) | 0.00088 lb (0.4 g) |
| Platform Size (LxHxW) | 23.6 in x 4.7 in x 31.5 in (600 mm x 120 mm x 800 mm) |
| Material | Powder Coated Carbon Steel |
| Protection Rating | IP65 |
| Scale Interface | SICSpro |
| Hazardous Approval | No |
| Readability (Certified) | 0.01 lb (10 g) |
| Repeatability | 1 g |
| Repeatability, typical | 0.4 g |
| Repeatability (typical) | 0.00088 lb |
| Dimensions (LxHxW) | 23.6 in x 4.72 in x 31.5 in (600 mm x 120 mm x 800 mm) |
| Weighing Pan Dimensions (LxHxW) | 23.6 in x 3.27 in x 31.5 in (600 mm x 83 mm x 800 mm) |
| Cable | 8.5 ft (2.5 m) |
| Environment | Dusty & Light Wet (IP65) |
| Dimensions/Platform Size | from 19.8" to 31.5"; from 501 to 800 mm |
| Legal for Trade | NTEP; OIML |
| Hazardous Area | Non-hazardous area |
| Hygienic Design | No |
| Linearity, typical | 2 g |
| Linearity (typical) | 0.005 lb |
| Platform Type | Bench Platforms |
| Material Number(s) | 30024747 |
