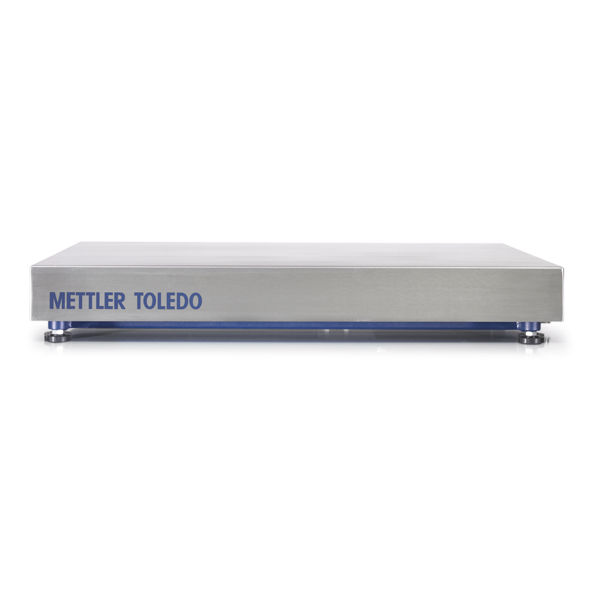

Weighing Platform PBD655-CC300 US
The PBD655 platform is a true digital, pre-calibrated device designed for simplicity. Plug the platform into a suitable terminal and start weighing.
Material No.: 30024749
Highlights
Ready to Operate in Seconds
The PBD655 platform is a true digital, pre-calibrated device designed for simplicity. Plug the platform into a suitable terminal and start weighing.
For High Precision Applications
The extremely robust platform design features an approvable resolution of NTEP 10'000d for optimal weighing and counting precision.
Highly Durable
The load frame is powder-coated and the load plate consists of brushed stainless steel. This stands for high durability over a long period of time.
Specifications
Specifications - Weighing Platform PBD655-CC300 US
| Maximum Capacity | 500 lb (300 kg) |
| Readability | 0.01 lb (5 g) |
| Material | Powder Coated Carbon Steel |
| Repeatability (sd) | 0.0029 lb (1.3 g) |
| Protection Rating | IP65 |
| Scale Interface | SICSpro |
| Platform Size (LxHxW) | 23.6 in x 4.7 in x 31.5 in (600 mm x 120 mm x 800 mm) |
| Hazardous Approval | No |
| Readability (Certified) | 0.05 lb (50 g) |
| Repeatability | 0.01 lb |
| Repeatability, typical | 1.3 g |
| Repeatability, (typical) | 0.0029 lb |
| Dimensions (LxHxW) | 23.6 in x 4.72 in x 31.5 in (600 mm x 120 mm x 800 mm) |
| Weighing Pan Dimensions (LxHxW) | 23.6 in x 3.27 in x 31.5 in (600 mm x 83 mm x 800 mm) |
| Cable | 8.5 ft (2.5 m) |
| Dimensions/Platform Size | from 19.8" to 31.5" from 501 to 800 mm |
| Hazardous Area | Non-hazardous area |
| Legal for Trade | NTEP OIML |
| Environment | Dusty & Light Wet (IP65) |
| Hygienic Design | No |
| Linearity, typical | 10 g |
| Linearity (typical) | 0.02 lb |
| Platform Type | Bench Platforms |
