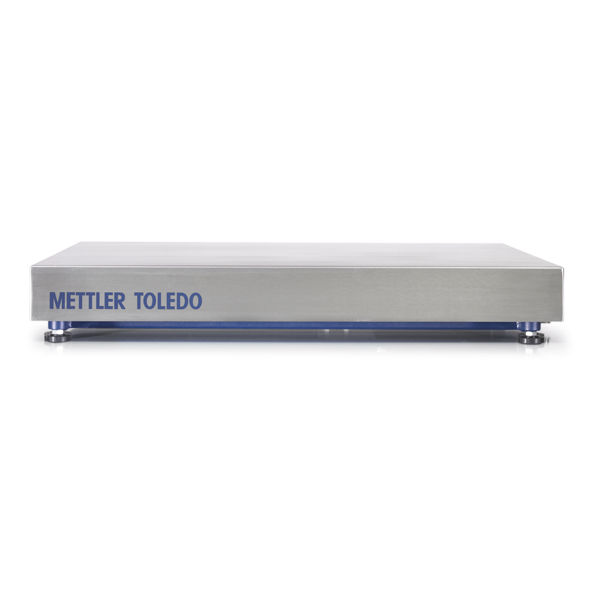

Weighing Platform PBD655-BC300 US

The Plug and Weigh Design.The PBD655 platform is a true digital, pre-calibrated device designed for simplicity. Plug the platform into a suitable terminal and start weighing.

Ready to Operate in Seconds

The PBD655 platform is a true digital, pre-calibrated device designed for simplicity. Plug the platform into a suitable terminal and start weighing.

For High Precision Applications

The extremely robust platform design features an approvable resolution of NTEP 10'000d for optimal weighing and counting precision.

Highly Durable

The load frame is powder-coated and the load plate consists of brushed stainless steel. This stands for high durability over a long period of time.

Specifications - Weighing Platform PBD655-BC300 US
Maximum Capacity
500 lb (300 kg)
Readability
0.01 lb (5 g)
Repeatability(sd)
0.0029 lb (1.3 g)
Platform Size (LxHxW)
19.7 in x 4.3 in x 25.6 in (500 mm x 110 mm x 650 mm)
Material
Powder Coated Carbon Steel
Protection Rating
IP65
Scale Interface
SICSpro
Hazardous Approval
No
Readability (Certified)
0.05 lb (50 g)
Repeatability
5 g
Repeatability, typical
1.3 g
Repeatability (typical)
0.0029 lb
Dimensions (LxHxW)
23.6 in x 4.33 in x 31.5 in (600 mm x 120 mm x 800 mm)
Weighing Pan Dimensions (LxHxW)
19.7 in x 2.87 in x 25.6 in (600 mm x 73 mm x 800 mm)
Cable
8.5 ft (2.5 m)
Environment
Dusty & Light Wet (IP65)
Dimensions/Platform Size
from 19.8" to 31.5"; from 501 to 800 mm
Legal for Trade
NTEP; OIML
Hazardous Area
Non-hazardous area
Hygienic Design
No
Linearity, typical
10 g
Linearity (typical)
0.02 lb
Platform Type
Bench Platforms
Material Number(s)
30024746

Accessories

Consumables

Get Your Quote
Weighing Platform PBD655-BC300 US
