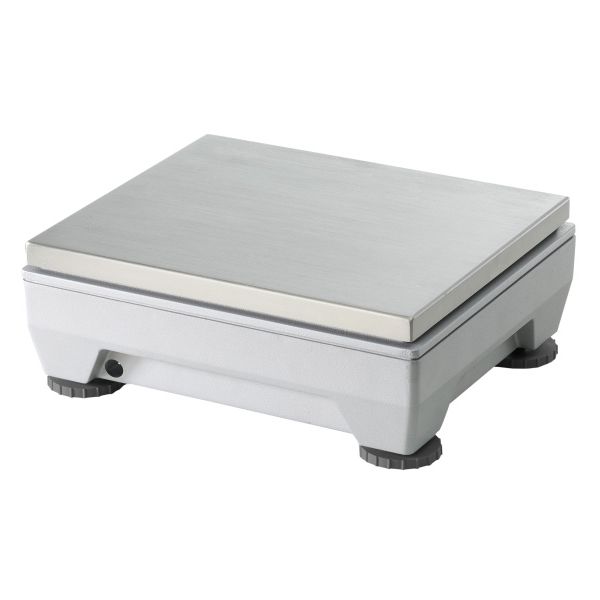

Weighing Platform PBD555-6SM
For best performance.
Strain gauge technology
This strain gauge platform includes the weighing tecnology with the calibration datas, which offers "plug and weigh"
Durable and Rugged
Suitable for usage in tough industrial environments with durable aluminium die cast housing and overload protection.
Digital Scale Connection SICSpro
Guaranteed precise weighing results thanks to excellent immunity of digital signals from electromagnetic influences
Material No.: 30061232
/content/us/en/home/products/Industrial_Weighing_Solutions/weighing-platforms/weighing-platform-pbd555-6sm-30061232.fb.1.c.11.html?abcl=2
Call for Quote Product Family:platform-scale00040072
Maximum Capacity:12 lb (6 kg)Maximum Capacity:12 lbMaximum Capacity:6 kgReadability:0.0005 lb (0.1 g)Readability:0.0005 lbReadability:0.1 gPlatform Size (LxHxW):7.9 in x 3.7 in x 9.8 in (200 mm x 95 mm x 240 mm)Platform Size (LxHxW):7.9 in x 3.7 in x 9.8 in (200 mm x 95 mm x 240 mm)Readability (Certified):1 gReadability (Certified):1 gEnvironment:Dry (<IP65)Environment:Dry (<IP65)Dimensions/Platform Size:</=400 mm; from 6.3" to 15.7"Dimensions/Platform Size:</=400 mmDimensions/Platform Size:from 6.3" to 15.7"Legal for Trade:OIMLLegal for Trade:OIMLHazardous Area:Non-hazardous areaHazardous Area:Non-hazardous areaHygienic Design:NoHygienic Design:No
Specifications - Weighing Platform PBD555-6SM
| Maximum Capacity | 12 lb (6 kg) |
| Readability | 0.0005 lb (0.1 g) |
| Repeatability(sd) | 0.00009 lb (0.04 g) |
| Platform Size (LxHxW) | 7.9 in x 3.7 in x 9.8 in (200 mm x 95 mm x 240 mm) |
| Material | Aluminium diecast |
| Protection Rating | IP54 |
| Scale Interface | SICSpro |
| Hazardous Approval | No |
| Resolution | 0.0002 lb |
| Readability (Certified) | 1 g |
| Repeatability | 0.1 g |
| Repeatability, typical | 0.04 g |
| Repeatability (typical) | 0.00009 lb |
| Dimensions (LxW) | 15.7 in x 19.7 in (400 mm x 86 mm x 500 mm) |
| Weighing Pan Dimensions (LxW) | 19.7 in (400 mm x 500 mm) |
| Cable | 3.3 ft (1 m) |
| Environment | Dry (<IP65) |
| Dimensions/Platform Size | </=400 mm; from 6.3" to 15.7" |
| Legal for Trade | OIML |
| Hazardous Area | Non-hazardous area |
| Hygienic Design | No |
| Platform Type | Bench Platforms |
| Material Number(s) | 30061232 |
