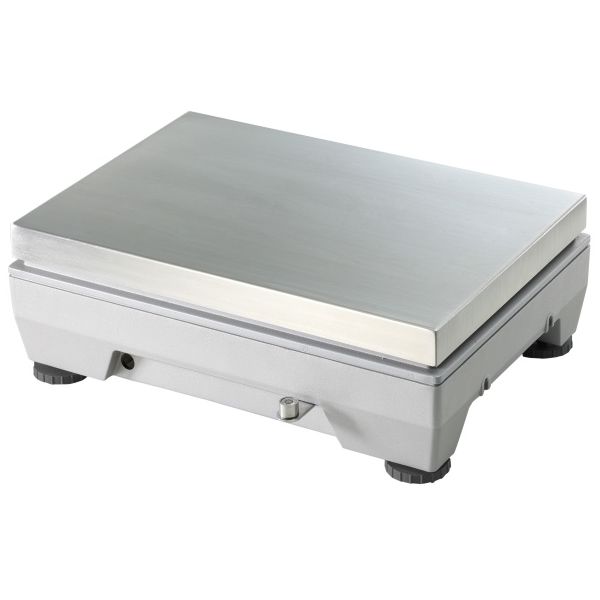

Weighing Platform PBD555-35LA/65
For best performance.
Strain gauge technology
This strain gauge platform includes the weighing tecnology with the calibration datas, which offers "plug and weigh"
Durable, rugged and dustproof
Suitable for usage in tough and dusty industrial environments with aluminium die cast housing, overload protection and IP65 sealing.
Digital Scale Connection SICSpro
Guaranteed precise weighing results thanks to excellent immunity of digital signals from electromagnetic influences
Material No.: 30061238
/content/us/en/home/products/Industrial_Weighing_Solutions/weighing-platforms/weighing-platform-pbd555-35la-65-30061238.fb.1.c.11.html?abcl=2
Call for Quote Product Family:platform-scale00040065
Maximum Capacity:60 lb (35 kg)Maximum Capacity:60 lbMaximum Capacity:35 kgReadability:0.005 lb (0.5 g)Readability:0.005 lbReadability:0.5 gPlatform Size (LxHxW):9.4 in x 4.3 in x 14 in (240 mm x 110 mm x 350 mm)Platform Size (LxHxW):9.4 in x 4.3 in x 14 in (240 mm x 110 mm x 350 mm)Readability (Certified):5 gReadability (Certified):5 gEnvironment:Dusty & Light Wet (IP65)Environment:Dusty & Light Wet (IP65)Dimensions/Platform Size:</=400 mm; from 6.3" to 15.7"Dimensions/Platform Size:</=400 mmDimensions/Platform Size:from 6.3" to 15.7"Legal for Trade:OIMLLegal for Trade:OIMLHazardous Area:Non-hazardous areaHazardous Area:Non-hazardous areaHygienic Design:NoHygienic Design:No
Specifications - Weighing Platform PBD555-35LA/65
| Maximum Capacity | 60 lb (35 kg) |
| Readability | 0.005 lb (0.5 g) |
| Repeatability(sd) | 0.00044 lb (0.2 g) |
| Platform Size (LxHxW) | 9.4 in x 4.3 in x 14 in (240 mm x 110 mm x 350 mm) |
| Material | Aluminium diecast |
| Protection Rating | IP65 |
| Scale Interface | SICSpro |
| Hazardous Approval | No |
| Resolution | 0.001 lb |
| Readability (Certified) | 5 g |
| Repeatability | 0.5 g |
| Repeatability, typical | 0.2 g |
| Repeatability (typical) | 0.00044 lb |
| Dimensions (LxW) | 9.5 in x 11.8 in (240 mm x 80 mm x 300 mm) |
| Weighing Pan Dimensions (LxW) | 11.8 in (240 mm x 300 mm) |
| Cable | 3.3 ft (1 m) |
| Environment | Dusty & Light Wet (IP65) |
| Dimensions/Platform Size | </=400 mm; from 6.3" to 15.7" |
| Legal for Trade | OIML |
| Hazardous Area | Non-hazardous area |
| Hygienic Design | No |
| Linearity, typical | 1 g |
| Linearity (typical) | 0.002 lb |
| Platform Type | Bench Platforms |
| Material Number(s) | 30061238 |
