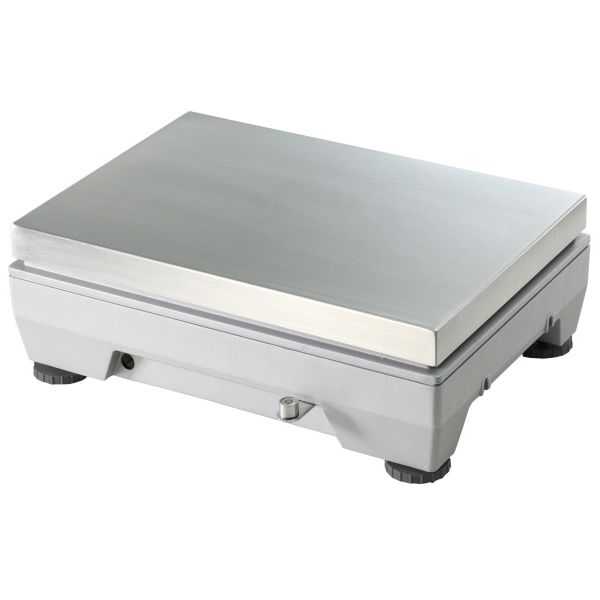

Weighing Platform PBD555-15LA
For best performance.
Strain gauge technology
This strain gauge platform includes the weighing tecnology with the calibration datas, which offers "plug and weigh"
Durable and Rugged
Suitable for usage in tough industrial environments with durable aluminium die cast housing and overload protection.
Digital Scale Connection SICSpro
Guaranteed precise weighing results thanks to excellent immunity of digital signals from electromagnetic influences
Material No.: 30061235
/content/us/en/home/products/Industrial_Weighing_Solutions/weighing-platforms/weighing-platform-pbd555-15la-30061235.fb.1.c.11.html?abcl=2
Call for Quote Product Family:platform-scale00040068
Maximum Capacity:30 lb (15 kg)Maximum Capacity:30 lbMaximum Capacity:15 kgReadability:0.002 lb (0.2 g)Readability:0.002 lbReadability:0.2 gPlatform Size (LxHxW):9.4 in x 4.3 in x 14 in (240 mm x 110 mm x 350 mm)Platform Size (LxHxW):9.4 in x 4.3 in x 14 in (240 mm x 110 mm x 350 mm)Readability (Certified):2 gReadability (Certified):2 gEnvironment:Dry (<IP65)Environment:Dry (<IP65)Dimensions/Platform Size:</=400 mm; from 6.3" to 15.7"Dimensions/Platform Size:</=400 mmDimensions/Platform Size:from 6.3" to 15.7"Legal for Trade:OIMLLegal for Trade:OIMLHazardous Area:Non-hazardous areaHazardous Area:Non-hazardous areaHygienic Design:NoHygienic Design:No
Specifications - Weighing Platform PBD555-15LA
| Maximum Capacity | 30 lb (15 kg) |
| Readability | 0.002 lb (0.2 g) |
| Repeatability(sd) | 0.00017 lb (0.08 g) |
| Platform Size (LxHxW) | 9.4 in x 4.3 in x 14 in (240 mm x 110 mm x 350 mm) |
| Material | Aluminium diecast |
| Protection Rating | IP54 |
| Scale Interface | SICSpro |
| Hazardous Approval | No |
| Resolution | 0.0005 lb |
| Readability (Certified) | 2 g |
| Repeatability | 0.2 g |
| Repeatability, typical | 0.08 g |
| Repeatability (typical) | 0.00017 lb |
| Dimensions (LxW) | 9.5 in x 11.8 in (240 mm x 80 mm x 300 mm) |
| Weighing Pan Dimensions (LxW) | 11.8 in (240 mm x 300 mm) |
| Cable | 3.3 ft (1 m) |
| Environment | Dry (<IP65) |
| Dimensions/Platform Size | </=400 mm; from 6.3" to 15.7" |
| Legal for Trade | OIML |
| Hazardous Area | Non-hazardous area |
| Hygienic Design | No |
| Linearity, typical | 0.5 g |
| Linearity (typical) | 0.001 lb |
| Platform Type | Bench Platforms |
| Material Number(s) | 30061235 |
