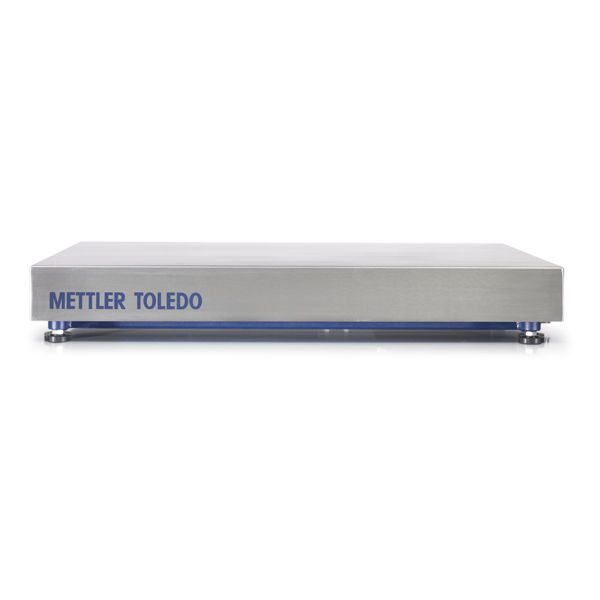

Weighing Platform PBA655-CC600 US
For Accurate Weighing.
For High Precision Applications
The PBA655 extremely robust platform design features an approvable resolution of OIML 6'000e and NTEP 10'000d for optimal weighing precision.
The load frame is powder-coated and the load plate consists of brushed stainless steel. This stands for high durability over a long period of time.
The PBA655 platform feature several optimal positioned and adjusted overload stops to ensure best possible Load Cell protection.
Maximum Capacity:1,000 lb (300 kg/600 kg)Maximum Capacity:1,000 lbMaximum Capacity:600 kgReadability:0.02 lb (10 g)Readability:0.02 lbReadability:10 gPlatform Size (LxHxW):23.6 in x 4.72 in x 31.5 in (600 mm x 120 mm x 800 mm)Platform Size (LxHxW):23.6 in x 4.72 in x 31.5 in (600 mm x 120 mm x 800 mm)Readability (Certified):100 g; 200 gReadability (Certified):100 gReadability (Certified):200 gEnvironment:Dusty & Light Wet (IP65)Environment:Dusty & Light Wet (IP65)Dimensions/Platform Size:from 19.8" to 31.5"; from 501 to 800 mmDimensions/Platform Size:from 19.8" to 31.5"Dimensions/Platform Size:from 501 to 800 mmLegal for Trade:OIMLLegal for Trade:OIMLHazardous Area:Non-hazardous areaHazardous Area:Non-hazardous areaHygienic Design:NoHygienic Design:No
Specifications - Weighing Platform PBA655-CC600 US
| Maximum Capacity||1,000 lb (300 kg/600 kg)|
| Readability||0.02 lb (10 g)|
| Repeatability(sd)||0.0092 lb (4.2 g)|
| Platform Size (LxHxW)||23.6 in x 4.72 in x 31.5 in (600 mm x 120 mm x 800 mm)|
| Material||Powder Coated Carbon Steel|
| Protection Rating||IP65|
| Scale Interface||Analog|
| Hazardous Approval||No|
| Readability (Certified)||100 g; 200 g|
| Repeatability||10 g|
| Repeatability, typical||20 g|
| Repeatability (typical)||0.05 lb|
| Dimensions (LxHxW)||23.6 in x 4.72 in x 31.5 in (600 mm x 120 mm x 800 mm)|
| Weighing Pan Dimensions (LxHxW)||23.6 in x 3.27 in x 31.5 in (600 mm x 83 mm x 800 mm)|
| Cable||8.2 ft (2.5 m)|
| Environment||Dusty & Light Wet (IP65)|
| Dimensions/Platform Size||from 19.8" to 31.5"; from 501 to 800 mm|
| Legal for Trade||OIML|
| Hazardous Area||Non-hazardous area|
| Hygienic Design||No|
| Linearity, typical||40 g|
| Linearity (typical)||0.1 lb|
| Platform Type||Bench Platforms|
| Material Number(s)||30024678|
