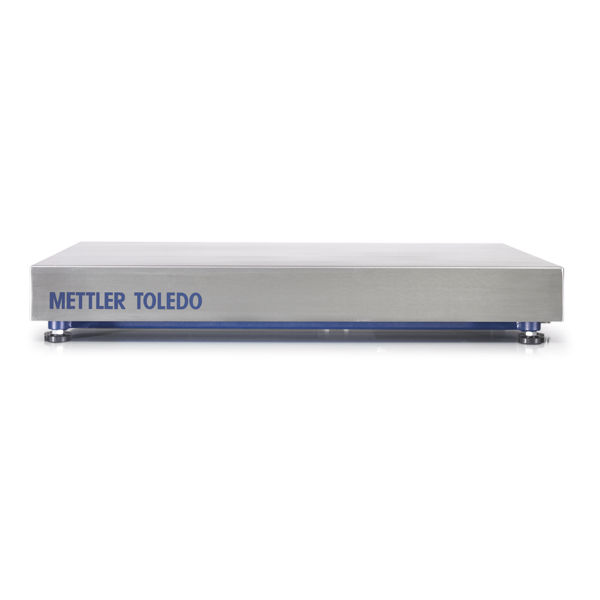

Weighing Platform PBA655-BC60 US
For Accurate Weighing.
For High Precision Applications
The PBA655 extremely robust platform design features an approvable resolution of OIML 6'000e and NTEP 10'000d for optimal weighing precision.
The load frame is powder-coated and the load plate consists of brushed stainless steel. This stands for high durability over a long period of time.
The PBA655 platform feature several optimal positioned and adjusted overload stops to ensure best possible Load Cell protection.
Material No.: 30024672
Maximum Capacity:100 lb (60 kg)Maximum Capacity:100 lbMaximum Capacity:60 kgReadability:0.002 lb (1 g)Readability:0.002 lbReadability:1 gPlatform Size (LxHxW):19.7 in x 4.33 in x 25.6 in (500 mm x 110 mm x 650 mm)Platform Size (LxHxW):19.7 in x 4.33 in x 25.6 in (500 mm x 110 mm x 650 mm)Readability (Certified):0.01 lb (10 g)Readability (Certified):0.01 lb (10 g)Environment:Dusty & Light Wet (IP65)Environment:Dusty & Light Wet (IP65)Dimensions/Platform Size:from 19.8" to 31.5"; from 501 to 800 mmDimensions/Platform Size:from 19.8" to 31.5"Dimensions/Platform Size:from 501 to 800 mmLegal for Trade:NTEP; OIMLLegal for Trade:NTEPLegal for Trade:OIMLHazardous Area:Non-hazardous areaHazardous Area:Non-hazardous areaHygienic Design:NoHygienic Design:No
Specifications - Weighing Platform PBA655-BC60 US
| Maximum Capacity||100 lb (60 kg)|
| Readability||0.002 lb (1 g)|
| Repeatability(sd)||0.0016 lb (0.7 g)|
| Platform Size (LxHxW)||19.7 in x 4.33 in x 25.6 in (500 mm x 110 mm x 650 mm)|
| Material||Powder Coated Carbon Steel|
| Protection Rating||IP65|
| Scale Interface||Analog|
| Hazardous Approval||No|
| Readability (Certified)||0.01 lb (10 g)|
| Repeatability||1 g|
| Repeatability, typical||1 g|
| Repeatability (typical)||0.002 lb|
| Dimensions (LxHxW)||19.7 in x 4.33 in x 25.6 in (500 mm x 110 mm x 650 mm)|
| Weighing Pan Dimensions (LxHxW)||19.7 in x 2.87 in x 25.6 in (500 mm x 73 mm x 650 mm)|
| Cable||8.2 ft (2.5 m)|
| Environment||Dusty & Light Wet (IP65)|
| Dimensions/Platform Size||from 19.8" to 31.5"; from 501 to 800 mm|
| Legal for Trade||NTEP; OIML|
| Hazardous Area||Non-hazardous area|
| Hygienic Design||No|
| Linearity, typical||2 g|
| Linearity (typical)||0.005 lb|
| Platform Type||Bench Platforms|
| Material Number(s)||30024672|
