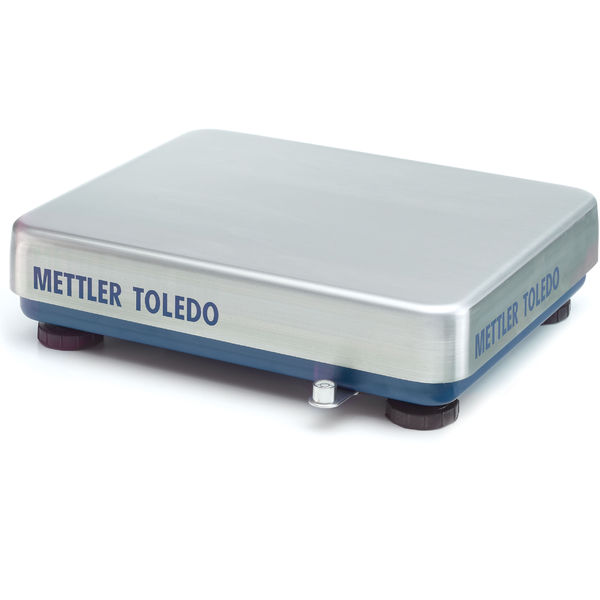

Weighing Platform PBA655-A12 US
For Accurate Weighing.
For High Precision Applications
The PBA655 extremely robust platform design features an approvable resolution of OIML 6'000e and NTEP 10'000d for optimal weighing precision.
The load frame is powder-coated and the load plate consists of brushed stainless steel. This stands for high durability over a long period of time.
The PBA655 platform feature several optimal positioned and adjusted overload stops to ensure best possible Load Cell protection.
Material No.: 30024667
Maximum Capacity:20 lb (12 kg)Maximum Capacity:20 lbMaximum Capacity:12 kgReadability:0.0005 lb (0.2 g)Readability:0.0005 lbReadability:0.2 gPlatform Size (LxHxW):9.5 in x 3.15 in x 11.8 in (240 mm x 80 mm x 300 mm)Platform Size (LxHxW):9.5 in x 3.15 in x 11.8 in (240 mm x 80 mm x 300 mm)Readability (Certified):0.002 lb (2 g)Readability (Certified):0.002 lb (2 g)Environment:Dusty & Light Wet (IP65)Environment:Dusty & Light Wet (IP65)Dimensions/Platform Size:</=400 mm; from 6.3" to 15.7"Dimensions/Platform Size:</=400 mmDimensions/Platform Size:from 6.3" to 15.7"Legal for Trade:NTEP; OIMLLegal for Trade:NTEPLegal for Trade:OIMLHazardous Area:Non-hazardous areaHazardous Area:Non-hazardous areaHygienic Design:NoHygienic Design:No
Specifications - Weighing Platform PBA655-A12 US
| Maximum Capacity||20 lb (12 kg)|
| Readability||0.0005 lb (0.2 g)|
| Repeatability(sd)||0.00022 lb (0.1 g)|
| Platform Size (LxHxW)||9.5 in x 3.15 in x 11.8 in (240 mm x 80 mm x 300 mm)|
| Material||Powder Coated Carbon Steel|
| Protection Rating||IP65|
| Scale Interface||Analog|
| Hazardous Approval||No|
| Readability (Certified)||0.002 lb (2 g)|
| Repeatability||0.2 g|
| Repeatability, typical||0.2 g|
| Repeatability (typical)||0.0005 lb|
| Dimensions (LxHxW)||9.5 in x 3.15 in x 11.8 in (240 mm x 80 mm x 300 mm)|
| Weighing Pan Dimensions (LxHxW)||9.5 in x 1.73 in x 11.8 in (240 mm x 44 mm x 300 mm)|
| Cable||3.3 ft (2.5 m)|
| Environment||Dusty & Light Wet (IP65)|
| Dimensions/Platform Size||</=400 mm; from 6.3" to 15.7"|
| Legal for Trade||NTEP; OIML|
| Hazardous Area||Non-hazardous area|
| Hygienic Design||No|
| Linearity, typical||0.5 g|
| Linearity (typical)||0.001 lb|
| Platform Type||Bench Platforms|
| Material Number(s)||30024667|
