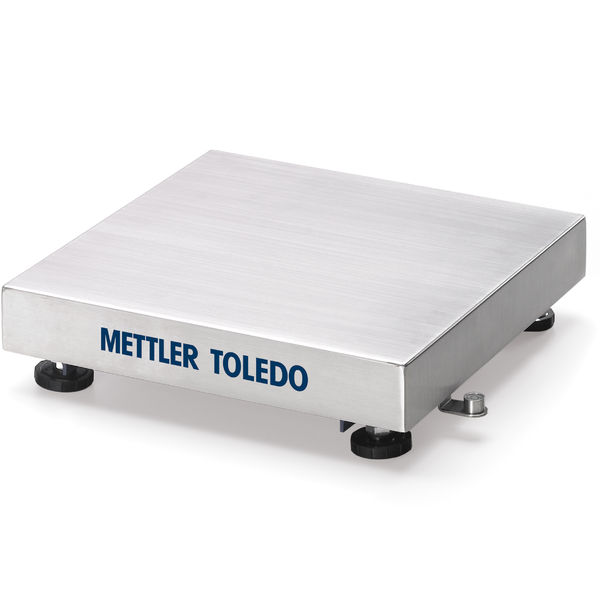

Weighing Platform PBA220-QC150
Cost Optimized Quality Solution.
Reliable and Accurate
The PBA220 platform is an OIML and NTEP approved cost-effective solution for a wide range of weighing tasks in any dry environment.
Stable and Rugged
The powder coated steel load frame and the stainless steel load plate allow a high durability and accurate weighing results.
Damage Protected
The PBA220 platform features six optimal adjusted overload stops, which ensure the best possible protection against weighing cell overload.
Material No.: 72195887
/content/us/en/home/products/Industrial_Weighing_Solutions/weighing-platforms/weighing-platform-pba220-qc150-72195887.fb.1.c.11.html?abcl=2
Call for Quote Product Family:platform-scale00040166
Maximum Capacity:300 lb (150 kg)Maximum Capacity:300 lbMaximum Capacity:150 kgReadability:0.05 lb (10 g)Readability:0.05 lbReadability:10 gPlatform Size (LxHxW):18 in x 3.11 in x 18 in (457 mm x 79 mm x 457 mm)Platform Size (LxHxW):18 in x 3.11 in x 18 in (457 mm x 79 mm x 457 mm)Readability (Certified):0.1 lb (50 g)Readability (Certified):0.1 lb (50 g)Environment:Dry (<IP65)Environment:Dry (<IP65)Dimensions/Platform Size:from 15.8" to 19.7"; from 401 to 500 mmDimensions/Platform Size:from 15.8" to 19.7"Dimensions/Platform Size:from 401 to 500 mmLegal for Trade:NTEP; OIMLLegal for Trade:NTEPLegal for Trade:OIMLHazardous Area:Non-hazardous areaHazardous Area:Non-hazardous areaHygienic Design:NoHygienic Design:No
Specifications - Weighing Platform PBA220-QC150
| Maximum Capacity | 300 lb (150 kg) |
| Readability | 0.05 lb (10 g) |
| Repeatability(sd) | 0.012 lb (5.1 g) |
| Platform Size (LxHxW) | 18 in x 3.11 in x 18 in (457 mm x 79 mm x 457 mm) |
| Material | Powder Coated Carbon Steel |
| Protection Rating | IP65 (Dry) |
| Hazardous Approval | No |
| Scale Interface | Analog |
| Readability (Certified) | 0.1 lb (50 g) |
| Repeatability | 10 g |
| Repeatability, typical | 5.1 g |
| Repeatability (typical) | 0.012 lb |
| Weighing Pan Dimensions (LxHxW) | 18 in x 1.93 in x 18 in (457 mm x 49 mm x 457 mm) |
| Bench Scale Type | Basic Level |
| Dimensions (LxHxW) | 18 in x 3.11 in x 18 in (457 mm x 79 mm x 457 mm) |
| Cable | 6.6 ft (2 m) |
| Environment | Dry (<IP65) |
| Dimensions/Platform Size | from 15.8" to 19.7"; from 401 to 500 mm |
| Legal for Trade | NTEP; OIML |
| Hazardous Area | Non-hazardous area |
| Hygienic Design | No |
| Linearity, typical | 50 g |
| Linearity (typical) | 0.1 lb |
| Linearity | 0.1 lb (50 g) |
| Platform Type | Bench Platforms |
| Material Number(s) | 72195887 |
