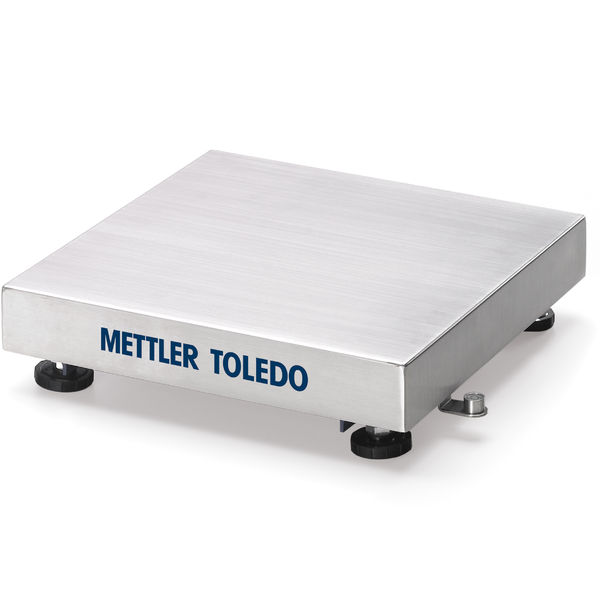

Weighing Platform PBA220-CC150
Cost Optimized Quality Solution.
Reliable and Accurate
The PBA220 platform is an OIML and NTEP approved cost-effective solution for a wide range of weighing tasks in any dry environment.
Stable and Rugged
The powder coated steel load frame and the stainless steel load plate allow a high durability and accurate weighing results.
The PBA220 platform features six optimal adjusted overload stops, which ensure the best possible protection against weighing cell overload.
| Maximum Capacity||300 lb (150 kg)|
| Readability||0.05 lb (10 g)|
| Repeatability(sd)||0.015 lb (6.8 g)|
| Platform Size (LxHxW)||23.6 in x 5.12 in x 31.5 in (600 mm x 130 mm x 800 mm)|
| Material||Powder Coated Carbon Steel|
| Protection Rating||IP65 (Dry)|
| Hazardous Approval||No|
| Scale Interface||Analog|
| Readability (Certified)||0.1 lb (50 g)|
| Repeatability||10 g|
| Repeatability, typical||6.8 g|
| Repeatability (typical)||0.015 lb|
| Weighing Pan Dimensions (LxHxW)||23.6 in x 3.54 in x 31.5 in (600 mm x 90 mm x 800 mm)|
| Bench Scale Type||Basic Level|
| Dimensions (LxHxW)||23.6 in x 5.12 in x 31.5 in (600 mm x 130 mm x 800 mm)|
| Cable||6.6 ft (2 m)|
| Environment||Dry (<IP65)|
| Dimensions/Platform Size||from 19.8" to 31.5"; from 501 to 800 mm|
| Legal for Trade||NTEP; OIML|
| Hazardous Area||Non-hazardous area|
| Hygienic Design||No|
| Linearity, typical||50 g|
| Linearity (typical)||0.1 lb|
| Linearity||0.1 lb (50 g)|
| Platform Type||Bench Platforms|
| Material Number(s)||72195859|
