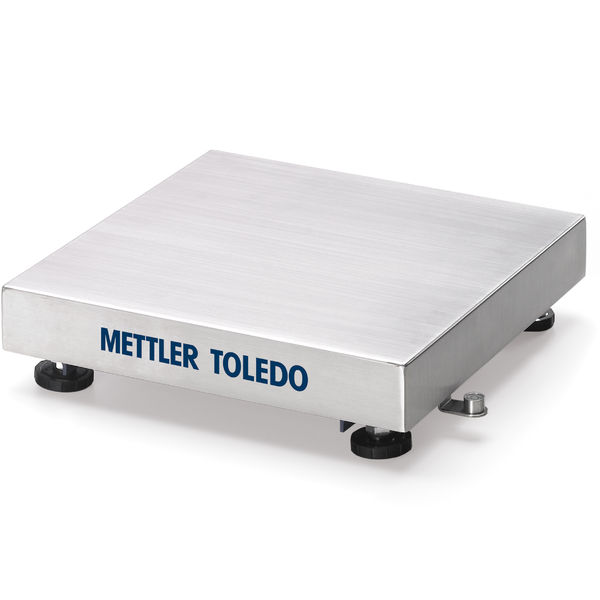

Weighing Platform PBA220-BC150

Weighing Platform PBA220-BC150

Cost Optimized Quality Solution.

Reliable and Accurate

The PBA220 platform is an OIML and NTEP approved cost-effective solution for a wide range of weighing tasks in any dry environment.

Stable and Rugged

The powder coated steel load frame and the stainless steel load plate allow a high durability and accurate weighing results.

Damage Protected

The PBA220 platform features six optimal adjusted overload stops, which ensure the best possible protection against weighing cell overload.

Material No.: 72195856

Call for Quote

Specifications

Specifications - Weighing Platform PBA220-BC150

Maximum Capacity
300 lb (150 kg)
Readability
0.05 lb (10 g)
Material
Powder Coated Carbon Steel
Protection Rating
IP65 (Dry)
Repeatability (sd)
0.012 lb (5.1 g)
Scale Interface
Analog
Platform Size (LxHxW)
19.7 in x 4.53 in x 25.6 in (500 mm x 115 mm x 650 mm)
Hazardous Approval
No
Readability (Certified)
0.1 lb (50 g)
Repeatability
0.02 lb
Repeatability, typical
5.1 g
Repeatability, (typical)
0.012 lb
Weighing Pan Dimensions (LxHxW)
19.7 in x 2.88 in x 25.6 in (500 mm x 73 mm x 650 mm)
Bench Scale Type
Basic Level
Dimensions (LxHxW)
19.7 in x 4.53 in x 25.6 in (500 mm x 115 mm x 650 mm)
Cable
6.6 ft (2 m)
Environment
Dry (<IP65)
Dimensions/Platform Size
from 19.8" to 31.5"
from 501 to 800 mm
Legal for Trade
NTEP
OIML
Hazardous Area
Non-hazardous area
Hygienic Design
No
Linearity, typical
50 g
Linearity (typical)
0.1 lb
Linearity
0.1 lb (50 g)
Platform Type
Bench Platforms
