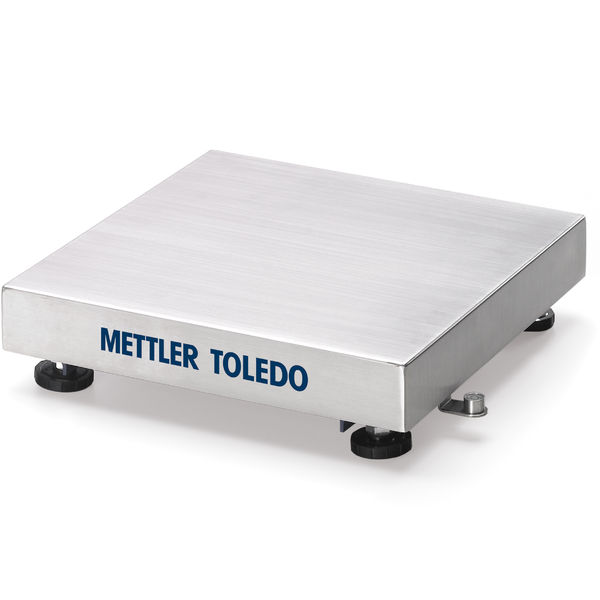

Weighing Platform PBA220-BB60
Cost Optimized Quality Solution.
Reliable and Accurate
The PBA220 platform is an OIML and NTEP approved cost-effective solution for a wide range of weighing tasks in any dry environment.
Stable and Rugged
The powder coated steel load frame and the stainless steel load plate allow a high durability and accurate weighing results.
Damage Protected
The PBA220 platform features six optimal adjusted overload stops, which ensure the best possible protection against weighing cell overload.
Material No.: 72195852
/content/us/en/home/products/Industrial_Weighing_Solutions/weighing-platforms/weighing-platform-pba220-bb60-72195852.fb.1.c.11.html?abcl=2
Call for Quote Product Family:platform-scale00040167
Maximum Capacity:150 lb (60 kg)Maximum Capacity:150 lbMaximum Capacity:60 kgReadability:0.02 lb (5 g)Readability:0.02 lbReadability:5 gPlatform Size (LxHxW):11.8 in x 3.05 in x 15.7 in (300 mm x 77.5 mm x 400 mm)Platform Size (LxHxW):11.8 in x 3.05 in x 15.7 in (300 mm x 77.5 mm x 400 mm)Readability (Certified):0.05 lb (20 g)Readability (Certified):0.05 lb (20 g)Environment:Dry (<IP65)Environment:Dry (<IP65)Dimensions/Platform Size:</=400 mm; from 6.3" to 15.7"Dimensions/Platform Size:</=400 mmDimensions/Platform Size:from 6.3" to 15.7"Legal for Trade:NTEP; OIMLLegal for Trade:NTEPLegal for Trade:OIMLHazardous Area:Non-hazardous areaHazardous Area:Non-hazardous areaHygienic Design:NoHygienic Design:No
Specifications - Weighing Platform PBA220-BB60
| Maximum Capacity | 150 lb (60 kg) |
| Readability | 0.02 lb (5 g) |
| Repeatability(sd) | 0.006 lb (2.7 g) |
| Platform Size (LxHxW) | 11.8 in x 3.05 in x 15.7 in (300 mm x 77.5 mm x 400 mm) |
| Material | Powder Coated Carbon Steel |
| Protection Rating | IP65 (Dry) |
| Hazardous Approval | No |
| Scale Interface | Analog |
| Readability (Certified) | 0.05 lb (20 g) |
| Repeatability | 5 g |
| Repeatability, typical | 2.7 g |
| Repeatability (typical) | 0.006 lb |
| Weighing Pan Dimensions (LxHxW) | 11.8 in x 1.89 in x 15.7 in (300 mm x 48 mm x 400 mm) |
| Bench Scale Type | Basic Level |
| Dimensions (LxHxW) | 11.8 in x 3.05 in x 15.7 in (300 mm x 77.5 mm x 400 mm) |
| Cable | 6.6 ft (2 m) |
| Environment | Dry (<IP65) |
| Dimensions/Platform Size | </=400 mm; from 6.3" to 15.7" |
| Legal for Trade | NTEP; OIML |
| Hazardous Area | Non-hazardous area |
| Hygienic Design | No |
| Linearity, typical | 20 g |
| Linearity (typical) | 0.05 lb |
| Linearity | 0.05 lb (20 g) |
| Platform Type | Bench Platforms |
| Material Number(s) | 72195852 |
