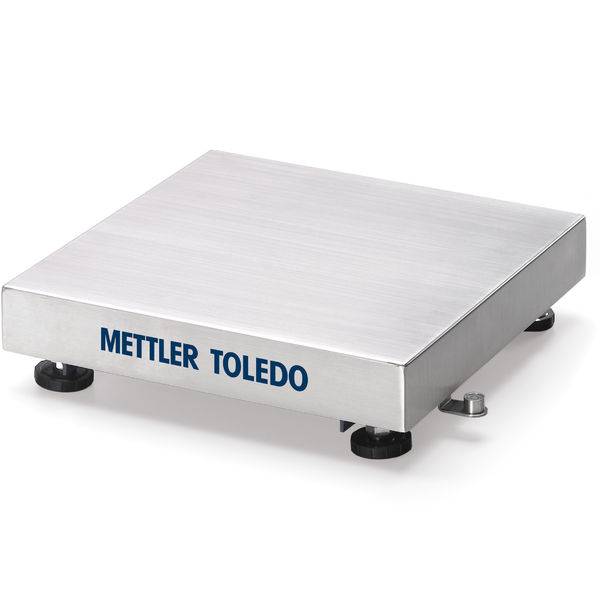

Weighing Platform PBA220-BB35
Cost Optimized Quality Solution.
Reliable and Accurate
The PBA220 platform is an OIML and NTEP approved cost-effective solution for a wide range of weighing tasks in any dry environment.
Stable and Rugged
The powder coated steel load frame and the stainless steel load plate allow a high durability and accurate weighing results.
The PBA220 platform features six optimal adjusted overload stops, which ensure the best possible protection against weighing cell overload.
| Maximum Capacity||60 lb (35 kg)|
| Readability||0.01 lb (2 g)|
| Repeatability(sd)||0.0029 lb (1.3 g)|
| Platform Size (LxHxW)||11.8 in x 3.05 in x 15.7 in (300 mm x 77.5 mm x 400 mm)|
| Material||Powder Coated Carbon Steel|
| Protection Rating||IP65 (Dry)|
| Hazardous Approval||No|
| Scale Interface||Analog|
| Readability (Certified)||0.02 lb (10 g)|
| Repeatability||2 g|
| Repeatability, typical||1.3 g|
| Repeatability (typical)||0.0029 lb|
| Weighing Pan Dimensions (LxHxW)||11.8 in x 1.89 in x 15.7 in (300 mm x 48 mm x 400 mm)|
| Bench Scale Type||Basic Level|
| Dimensions (LxHxW)||11.8 in x 3.05 in x 15.7 in (300 mm x 77.5 mm x 400 mm)|
| Cable||6.6 ft (2 m)|
| Environment||Dry (<IP65)|
| Dimensions/Platform Size||</=400 mm; from 6.3" to 15.7"|
| Legal for Trade||NTEP; OIML|
| Hazardous Area||Non-hazardous area|
| Hygienic Design||No|
| Linearity, typical||10 g|
| Linearity (typical)||0.02 lb|
| Linearity||0.02 lb (10 g)|
| Platform Type||Bench Platforms|
| Material Number(s)||72195851|
