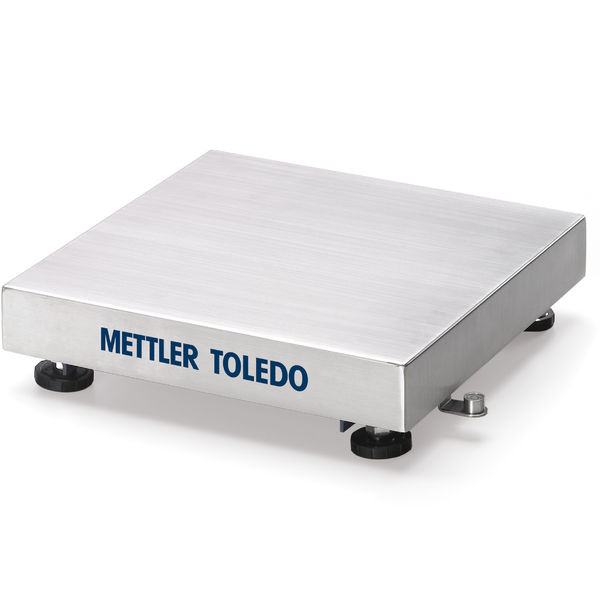

Weighing Platform PBA220-B60
Cost Optimized Quality Solution.
Reliable and Accurate
The PBA220 platform is an OIML and NTEP approved cost-effective solution for a wide range of weighing tasks in any dry environment.
Stable and Rugged
The powder coated steel load frame and the stainless steel load plate allow a high durability and accurate weighing results.
Damage Protected
The PBA220 platform features six optimal adjusted overload stops, which ensure the best possible protection against weighing cell overload.
Material No.: 72195853
Specifications - Weighing Platform PBA220-B60
| Maximum Capacity | 150 lb (60 kg) |
| Readability | 0.02 lb (5 g) |
| Material | Powder Coated Carbon Steel |
| Protection Rating | IP65 (Dry) |
| Repeatability (sd) | 0.006 lb (2.7 g) |
| Scale Interface | Analog |
| Platform Size (LxHxW) | 15.7 in x 3.11 in x 19.7 in (400 mm x 79 mm x 500 mm) |
| Hazardous Approval | No |
| Readability (Certified) | 0.05 lb (20 g) |
| Repeatability | 0.01 lb |
| Repeatability, typical | 2.7 g |
| Repeatability, (typical) | 0.006 lb |
| Bench Scale Type | Basic Level |
| Weighing Pan Dimensions (LxHxW) | 15.7 in x 1.93 in x 19.7 in (400 mm x 49 mm x 500 mm) |
| Dimensions (LxHxW) | 15.7 in x 3.11 in x 19.7 in (400 mm x 79 mm x 500 mm) |
| Cable | 6.6 ft (2 m) |
| Dimensions/Platform Size | from 15.8" to 19.7" from 401 to 500 mm |
| Hazardous Area | Non-hazardous area |
| Legal for Trade | NTEP OIML |
| Environment | Dry (<IP65) |
| Hygienic Design | No |
| Linearity, typical | 20 g |
| Linearity (typical) | 0.05 lb |
| Linearity | 0.05 lb (20 g) |
| Platform Type | Bench Platforms |
