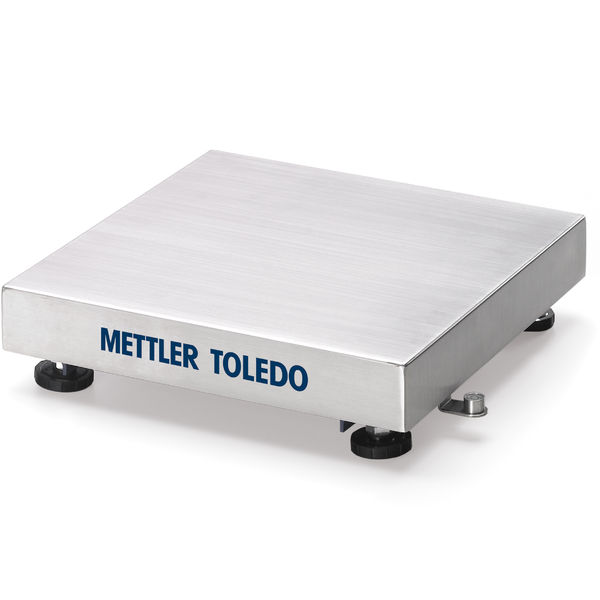

Weighing Platform PBA220-A15
Cost Optimized Quality Solution.
Reliable and Accurate
The PBA220 platform is an OIML and NTEP approved cost-effective solution for a wide range of weighing tasks in any dry environment.
Stable and Rugged
The powder coated steel load frame and the stainless steel load plate allow a high durability and accurate weighing results.
Damage Protected
The PBA220 platform features six optimal adjusted overload stops, which ensure the best possible protection against weighing cell overload.
Material No.: 72195850
/content/us/en/home/products/Industrial_Weighing_Solutions/weighing-platforms/weighing-platform-pba220-a15-72195850.fb.1.c.11.html?abcl=2
Call for Quote Product Family:platform-scale00040170
Maximum Capacity:30 lb (15 kg)Maximum Capacity:30 lbMaximum Capacity:15 kgReadability:0.05 lb (1 g)Readability:0.05 lbReadability:1 gPlatform Size (LxHxW):9.5 in x 2.7 in x 11.8 in (240 mm x 68.5 mm x 300 mm)Platform Size (LxHxW):9.5 in x 2.7 in x 11.8 in (240 mm x 68.5 mm x 300 mm)Readability (Certified):0.01 lb (5 g)Readability (Certified):0.01 lb (5 g)Environment:Dry (<IP65)Environment:Dry (<IP65)Dimensions/Platform Size:</=400 mm; from 6.3" to 15.7"Dimensions/Platform Size:</=400 mmDimensions/Platform Size:from 6.3" to 15.7"Legal for Trade:NTEP; OIMLLegal for Trade:NTEPLegal for Trade:OIMLHazardous Area:Non-hazardous areaHazardous Area:Non-hazardous areaHygienic Design:NoHygienic Design:No
Specifications - Weighing Platform PBA220-A15
| Maximum Capacity | 30 lb (15 kg) |
| Readability | 0.05 lb (1 g) |
| Repeatability(sd) | 0.0011 lb (0.5 g) |
| Platform Size (LxHxW) | 9.5 in x 2.7 in x 11.8 in (240 mm x 68.5 mm x 300 mm) |
| Material | Powder Coated Carbon Steel |
| Protection Rating | IP65 (Dry) |
| Hazardous Approval | No |
| Scale Interface | Analog |
| Readability (Certified) | 0.01 lb (5 g) |
| Repeatability | 1 g |
| Repeatability, typical | 0.5 g |
| Repeatability (typical) | 0.0011 lb |
| Weighing Pan Dimensions (LxHxW) | 9.5 in x 1.5 in x 11.8 in (240 mm x 38 mm x 300 mm) |
| Bench Scale Type | Basic Level |
| Dimensions (LxHxW) | 9.5 in x 2.7 in x 11.8 in (240 mm x 68.5 mm x 300 mm) |
| Cable | 3.3 ft (1 m) |
| Environment | Dry (<IP65) |
| Dimensions/Platform Size | </=400 mm; from 6.3" to 15.7" |
| Legal for Trade | NTEP; OIML |
| Hazardous Area | Non-hazardous area |
| Hygienic Design | No |
| Linearity, typical | 5 g |
| Linearity (typical) | 0.01 lb |
| Linearity | 0.01 lb (5 g) |
| Platform Type | Bench Platforms |
| Material Number(s) | 72195850 |
