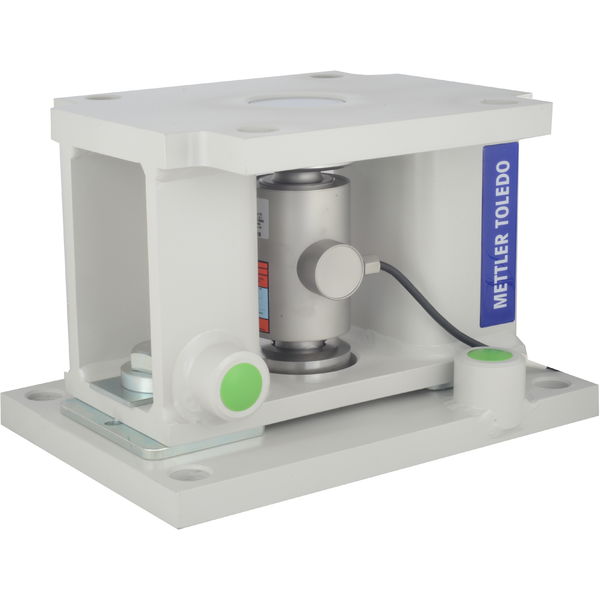

Weigh Module SWC415 PM CS 30t
Material No.: 30295859
Highlights
Cost Efficient
Weigh module is designed for economic applications. With highly accurate, fully approved stainless load cells, it suits many applications.
Safety & Protection
Gain peace of mind with 360-degree self-checking, dual lift-off, hazardous approvals and an IP68/IP69K-protected load cell.
Ease of Installation
It is light, low profile and thanks to SafeLock aligned and rigidly locked for installation with or without the load cell installed.
Specifications
Specifications - Weigh Module SWC415 PM CS 30t
| Maximum Capacity | 66,000 lb (30,000 kg) |
| Material | Zinc plated steel |
| Metrology | OIML C3, NTEP IIIL 10,000 |
| Load Cell | 0782/GD |
| Accuracy | Standard |
| Protection Rating | IP68/69k |
| Environment / Material | Normal / Carbon Steel |
| Hazardous Approval | ATEX, FM IEC Ex |
| Criticality | Standard |
| Cable | 13 m |
