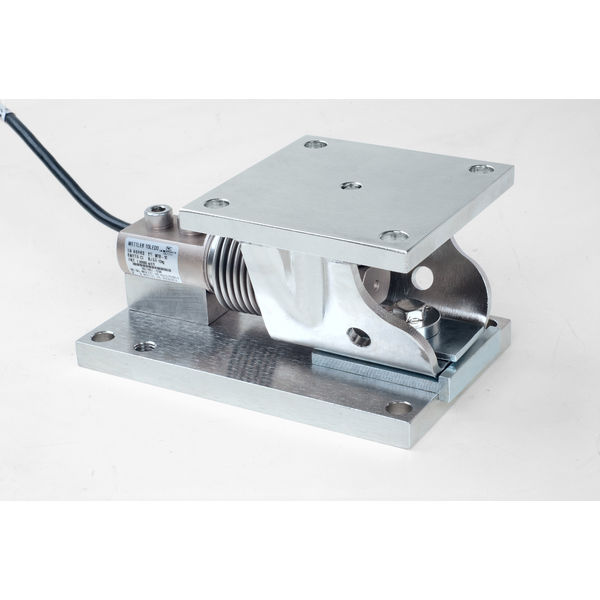

Weigh Module SWB505 316 200kg
Weigh Module SWB505 MultiMount Stainless Steel 316 200kg/440lb
Material No.: 30040925
Highlights
Static & Dynamic Weighing
Multipurpose weigh module provides the highest accuracy for both static and dynamic applications. Self-aligning rocker pin ensures repeatability.
Safety & Protection
Features include 360° checking, built-in anti-uplift and down stops, hazardous area approvals & IP68 stainless steel load cell. Peace of mind.
Ease of Installation/Service
Product is aligned for installation & transition to weighing mode is easy. Minimal lift required to remove load cell.
Specifications
Specifications - Weigh Module SWB505 316 200kg
| Maximum Capacity | 440 lb (200 kg) |
| Material | Stainless Steel V4A (AISI 316) |
| Metrology | NTEP III 5M OIML C3 |
| Load Cell | MTB, 3 m cable |
| Accuracy | Standard |
| Protection Rating | IP68 NEMA 6/6P |
| Environment / Material | Frequent wash-down / Hygienic |
| Hazardous Approval | ATEX FM cFM |
| Criticality | Standard |
