Bench Scale PBA430-CC600 - Overview - METTLER TOLEDO

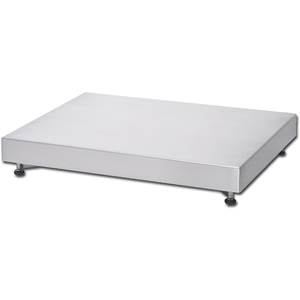

Bench Scale PBA430-CC600

The Bench Scale for Harsh Environments. Bench scale

When Cleanliness Counts

The PBA430 is designed according to the latest hygienic design guide lines. This outstanding product line is EHEDG, GMP and NSF certified. In addition, the platforms are suitable for Ex-zone 2/22.

The Surface Shows the Quality

The platform surface is electro-polished (except 600x800mm) providing more thorough cleaning and reduced risk of contamination or cross-contamination. The load plate is dishwasher safe.

Hermetically Sealed

The load cell is hermetically sealed. The IP69k protection indicates that it is suitable for high pressure cleaning. Even the harshest environments cannot damage this stainless steel load cell.

Specifications - Bench Scale PBA430-CC600
Maximum Capacity 300 kg/600 kg
Readability 20 g
Repeatability (sd) 4.9 g
Platform Size (LxW) 23.6 in x 31.5 in (600 mm x 800 mm)
Material Stainless Steel V2A (AISI 304)
Protection Rating IP68; IP69k
Hazardous Approval ATEX Cat. 3GD (analog); Safe area only! (SICSpro)
Readability (Certified) 100 g; 200 g
Repeatability 20 g
Cable 8.2 ft (2.5 m)
Resolution 100 g; 200 g
Dimensions (LxW) 23.6 in x 31.5 in (600 mm x 800 mm)
Hygenic Design Yes
Platform Type Bench Platforms
Scale Interface Analog
Material Number(s) 22010270
