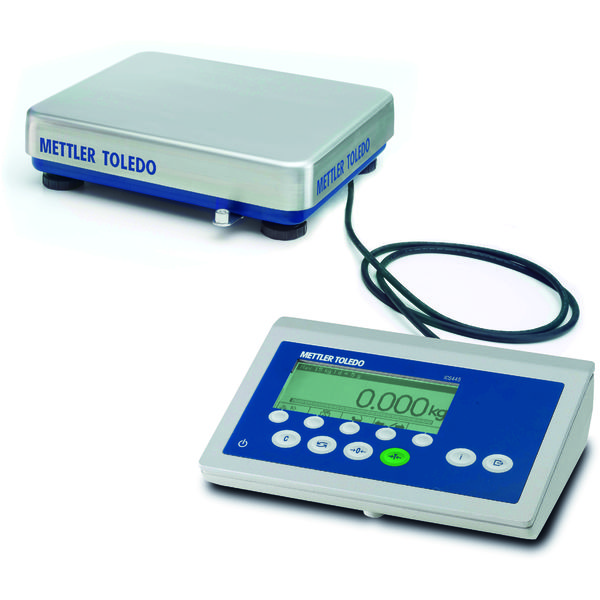

Bench Scale ICS445s-BB30/t/M
Reliable Performance.
Strain Gauge Technology
The ICS445 basic counting solution offers configurable soft keys for fast access to key functions, such as sampling for counting.
Durable and Rugged
Tough enough for use in industrial environments with aluminum die cast housing, overload protection and robust foil keypad.
Withstands Harsh, Dry and Dust-Contaminated Environments
The IP65-approved PBD655 Platform digital platform series is built for challenging environments.
Product Family:counting-scale000500040026
Maximum Capacity:30 kgMaximum Capacity:30 kgReadability (Certified):5 gReadability (Certified):5 gPlatform Size (LxWxH):11.8 in x 15.7 in x 3.4 in (300 mm x 400 mm x 86 mm)Platform Size (LxWxH):11.8 in x 15.7 in x 3.4 in (300 mm x 400 mm x 86 mm)Interfaces:RS232Interfaces:RS232Interfaces:Serial; Ethernet; USB; WLAN; Discrete I/OInterfaces:SerialInterfaces:EthernetInterfaces:USBInterfaces:WLANInterfaces:Discrete I/OApplications:Counting; Dynamic weighing; Simple WeighingApplications:CountingApplications:Dynamic weighingApplications:Simple WeighingDimensions/Platform Size:</=400 mm; from 6.3" to 15.7"Dimensions/Platform Size:</=400 mmDimensions/Platform Size:from 6.3" to 15.7"Environment:Dusty & Light Wet (IP65)Environment:Dusty & Light Wet (IP65)Hazardous Area:Non-hazardous areaHazardous Area:Non-hazardous areaLegal for Trade:OIMLLegal for Trade:OIMLHygenic Design:NoHygenic Design:No
Specifications - Bench Scale ICS445s-BB30/t/M
| Maximum Capacity | 30 kg |
| Readability (Certified) | 5 g |
| Repeatability (sd) | 0.3 g |
| Platform Size (LxWxH) | 11.8 in x 15.7 in x 3.4 in (300 mm x 400 mm x 86 mm) |
| Material | Platform: Carbon Steel; Terminal: Aluminium diecast |
| Protection Rating | IP65 |
| Display | Graphic LCD with backlit |
| Interfaces | RS232 |
| Housing | Platform: Carbon Steel; Terminal: Aluminium diecast |
| Repeatability | 0.5 g |
| Repeatability (typical) | 0.3 g |
| Application Software | Counting; Dynamic Weighing; Simple weighing |
| Hazardous Approval | No |
| Applications | Counting; Dynamic weighing; Simple Weighing |
| Data Interface | Ethernet; Serial; USB; WLAN |
| Environment | Dusty & Light Wet (IP65) |
| Hazardous Area | Non-hazardous area |
| Legal for Trade | OIML |
| Interfaces (Optional) | Discrete I/O; Ethernet; RS422; RS485; USB; WLAN |
| Scale Interface | SICSpro |
| Voltage | AC Version; Battery Version |
| Hygenic Design | No |
| Platform Type | Bench Scale |
| Material Number(s) | 22023235 |
