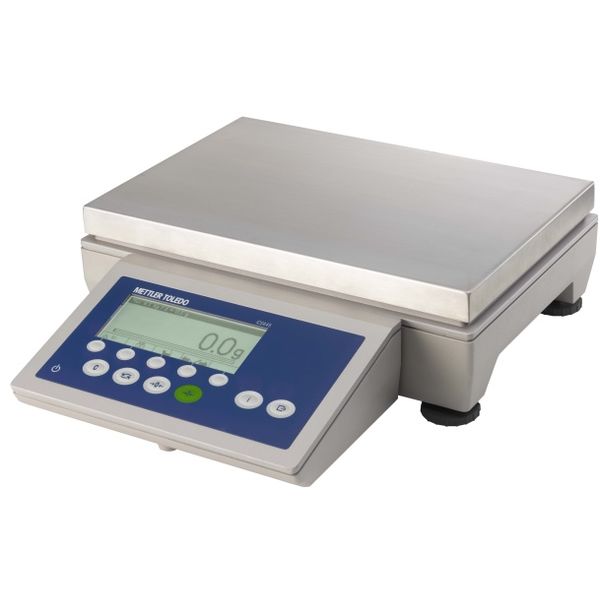

Compact Scale ICS445s-35LA/f/65
Reliable Performance.
Strain Gauge Technology
The ICS445 basic counting solution offers configurable soft keys for fast access to key functions, such as sampling for counting.
Durable and Rugged
Tough enough for use in industrial environments with aluminum die cast housing, overload protection and robust foil keypad.
Dust Proof
IP65 ingress-protected housing is optimal for use in dusty environments.
Product Family:counting-scale000500040015
Maximum Capacity:70 lb (35 kg)Maximum Capacity:70 lbMaximum Capacity:35 kgReadability:0.005 lb (0.5 g)Readability:0.005 lbReadability:0.5 gReadability (Certified):0.01 lbReadability (Certified):0.01 lbPlatform Size (LxWxH):11 in x 13.8 in x 4.3 in (240 mm x 350 mm x 110 mm)Platform Size (LxWxH):11 in x 13.8 in x 4.3 in (240 mm x 350 mm x 110 mm)Interfaces:RS232Interfaces:RS232Interfaces:Serial; Ethernet; USB; WLAN; Discrete I/OInterfaces:SerialInterfaces:EthernetInterfaces:USBInterfaces:WLANInterfaces:Discrete I/OApplications:Counting; Dynamic weighing; Simple WeighingApplications:CountingApplications:Dynamic weighingApplications:Simple WeighingDimensions/Platform Size:</=400 mm; from 6.3" to 15.7"Dimensions/Platform Size:</=400 mmDimensions/Platform Size:from 6.3" to 15.7"Environment:Dusty & Light Wet (IP65)Environment:Dusty & Light Wet (IP65)Hazardous Area:Non-hazardous areaHazardous Area:Non-hazardous areaLegal for Trade:NTEPLegal for Trade:NTEPHygenic Design:NoHygenic Design:No
Specifications - Compact Scale ICS445s-35LA/f/65
| Maximum Capacity | 70 lb (35 kg) |
| Readability | 0.005 lb (0.5 g) |
| Readability (Certified) | 0.01 lb |
| Repeatability (sd) | 0.00066 lb (0.3 g) |
| Platform Size (LxWxH) | 11 in x 13.8 in x 4.3 in (240 mm x 350 mm x 110 mm) |
| Material | Aluminium diecast |
| Protection Rating | IP65 |
| Repeatability | 0.001 lb (0.5 g) |
| Hazardous Approval | No |
| Display | Graphic LCD with backlit |
| Housing | Aluminum Diecast |
| Interfaces | RS232 |
| Repeatability (typical) | 0.3 g |
| Repeatability (typical) | 0.00066 lb |
| Application Software | Counting; Dynamic Weighing; Simple weighing |
| Applications | Counting; Dynamic weighing; Simple Weighing |
| Data Interface | Ethernet; Serial; USB; WLAN |
| Environment | Dusty & Light Wet (IP65) |
| Hazardous Area | Non-hazardous area |
| Legal for Trade | NTEP |
| Interfaces (Optional) | Discrete I/O; Ethernet; RS422; RS485; USB; WLAN |
| Scale Interface | SICSpro |
| Voltage | AC Version; Battery Version |
| Hygenic Design | No |
| Platform Type | Counting Scales |
| Material Number(s) | 22023067 |
