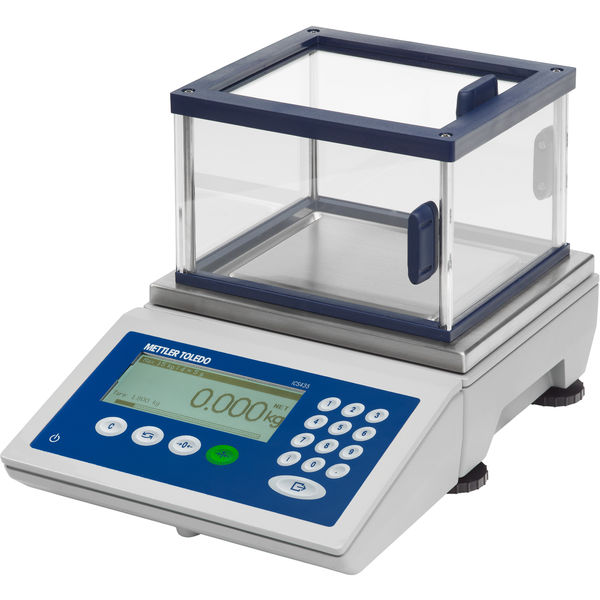

Compact Scale ICS435k-0.6XS/f

Highly Precise.

Greater Manufacturing Accuracy and Quality

The ICS435, made with MonoBloc® Technology, is the basic weighing level solution optimized for quick and easy weighing applications. It features a numeric keypad for quick pretaring.

Durable and Rugged

Tough enough for use in industrial environments with aluminum die cast housing, overload protection and robust foil keypad.

Specifications - Compact Scale ICS435k-0.6XS/f
Maximum Capacity
0.6 kg (1.2 lb)
Readability
0.001 g (0 lb)
Readability (Certified)
0.01 g (0.00002 lb)
Repeatability(sd)
0.001 g (0 lb)
Platform Size (Length)
130 mm (5.1 in)
Platform Size (Width)
160 mm (6.3 in)
Platform Size (Height)
95 mm (3.7 in)
Material
Aluminium diecast
Protection Rating
IP54
Repeatability
0.001 g
Repeatability
0 lb
Hazardous Approval
No
Housing
Aluminum Diecast
Interfaces
RS232
Display
Graphic LCD with backlit
Repeatability (typical)
0.001 g
Repeatability (typical)
0 lb
Application Software
Dynamic Weighing; Simple weighing
Legal for Trade
NTEP; OIML
Data Interface
Serial; USB; Ethernet; WLAN
Applications
Simple Weighing; Dynamic weighing
Environment
Dry (<IP65)
Hazardous Area
Non-hazardous area
Voltage
Battery Version; AC Version
Scale Interface
SICSpro
Interfaces (Optional)
USB; Ethernet; RS422; RS485; WLAN; Discrete I/O
Hygenic Design
No
Performance Optimization
For Best Performance: High resolution monobloc load cell; MinWeigh: Minimum Weigh determination acc. your tolerance limits; Easy Scale Leveling: For fast & precise leveling; FACT: Fully automated calibration
Process Integration
Variety of Interfaces: For easy process integration; 1 Standard & 1 Optional Interface: Serial, USB, Ethernet, WLAN, Dig. I/O; Control Additional Platforms: 1 platform attachable
Data Management
Convenient Printing: Easy creation of print & label templates; Custom Print Formats: Odette, AIAG, Galia etc.
Compliance Support
Intuitive User Guidance: Prevents from operator errors
Versatility
Mobile Operation: Battery optional available; Good Readability: Graphic LCD-Display with backlit; Numeric Keypad: For fast operation; Versatile Scale: For demanding weighing tasks in dry environment
Platform Type
Compact Scale
Legal for Trade Class OIML
Class II
Legal for Trade Class NTEP
Class II
Zero Return (typical)
0.001 g (0 lb)
Error of Indication at half load (typical)
0.001 g (0 lb)
Hysteresis (typical)
0.001 g (0 lb)
Eccentric Load Deviation at 1/3 of Full Load (typical) (Metric)
0.003 g
Eccentric Load Deviation at 1/3 of Full Load (typical)
0.00001 lb
Error of Indication at full load (typical)
0.002 g (0.00001 lb)
EasyPrint Name
ICS435k-0.6XS/f
Material Number(s)
22023134

Documentation

Product Documentation

Accessories

Consumables
