Weighing Platform PBA428-BC150 - Overview - METTLER TOLEDO

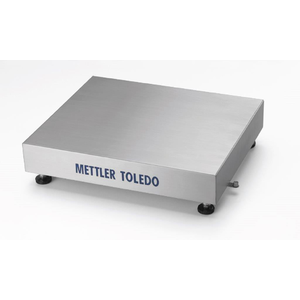

Weighing Platform PBA428-BC150 - Discontinued Product

For Demanding Applications.

High Durability

The rugged, full stainless steel frame & the hermetically sealed load cell ensures a long life time also when used in harsh, wet & humid environments (IP68/IP69k).

Easy to Clean

The open and sturdy platform design is built according to hygienic standards and allows fast, thorough and easy cleaning.

Damage Protected

Optimally placed and specific adjusted overload stops grant the best possible protection against load cell damaging.

Material No.: 72229504

Discontinued since: Jun, 2022

Call for Quote

Replaced with: Weighing Platform PBA439-BC150

Built for Wet and Humid Environments.The PBA439 stainless steel platform is a robust, durable and economical solution for a wide range of weighing tasks with heavy washdown requirements.

Accuracy Protection

Optimally placed and independently adjusted overload stops ensure the best possible protection against load cell damage.

High Durability

The electropolished, fully stainless steel construction is designed to withstand harsh environments to ensure equipment reliability and longevity.

Hazardous Area Approved

The PBA439 platform series is also available with global EX approvals for use in Zone 1/21, Div. 1 and Zone 2/22, Div. 2 hazardous environments.

Accessories - Weighing Platform PBA428-BC150

Consumables - Weighing Platform PBA428-BC150

Specifications- Weighing Platform PBA428-BC150

Specifications - Weighing Platform PBA428-BC150
Maximum Capacity
150 kg
20 g
Repeatability (sd)
6.6 g
Platform Size (LxHxW)
500 mm x 137.5 mm x 650 mm
Stainless Steel V2A (AISI 304)
Protection Rating
IP69k; IP68
Scale Interface
Hazardous Approval
20 g
Repeatability, typical
6.6 g
Repeatability (typical)
0.00044 lb
Dimensions (LxHxW)
500 mm x 137.5 mm x 650 mm
Weighing Pan Dimensions (LxHxW)
500 mm x 85 mm x 650 mm
2.5 m
Wet & Harsh Wet (>/=IP66)
Dimensions/Platform Size
from 501 to 800 mm
Hazardous Area
Non-hazardous area
Hygienic Design
Platform Type
Bench Platforms
Material Number(s)
