Weighing Platform PBA426X-B60H - Overview - METTLER TOLEDO

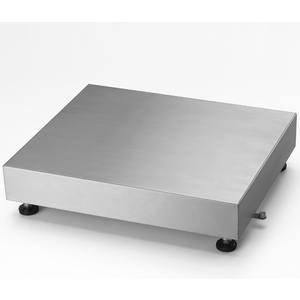

Weighing Platform PBA426X-B60H - Discontinued Product

For Challenging Applications.

High Durability

The rugged, full stainless steel frame & load cell ensures a long life time also when used in harsh & wet environments (IP65/IP67).

Easy to Clean

The open and sturdy platform design, built according to hygienic standards, allowing fast, thorough and easy cleaning.

Hazardous Area Approved

This platform is suitable for ATEX zone 1/21, the load cell is approved according FM Class I, II, III, Division 1 and it features a hygienic kit.

Material No.: 71211165

Discontinued since: Jun, 2022

Call for Quote

Replaced with: Weighing Platform PBA439-B60

Built for Wet and Humid Environments.The PBA439 stainless steel platform is a robust, durable and economical solution for a wide range of weighing tasks with heavy washdown requirements.

Accuracy Protection

Optimally placed and independently adjusted overload stops ensure the best possible protection against load cell damage.

High Durability

The electropolished, fully stainless steel construction is designed to withstand harsh environments to ensure equipment reliability and longevity.

Hazardous Area Approved

The PBA439 platform series is also available with global EX approvals for use in Zone 1/21, Div. 1 and Zone 2/22, Div. 2 hazardous environments.

Documentation - Weighing Platform PBA426X-B60H

Accessories - Weighing Platform PBA426X-B60H

Consumables - Weighing Platform PBA426X-B60H

Specifications- Weighing Platform PBA426X-B60H

Specifications - Weighing Platform PBA426X-B60H
Maximum Capacity
100 lb (60 kg)
Readability
0.01 lb (5 g)
Readability (Certified)
0.02 lb (20 g)
Repeatability(sd)
0.004 lb (1.8 g)
Platform Size (LxHxW)
15.7 in x 4.25 in x 19.7 in (400 mm x 134.5 mm x 500 mm)
Hazardous Approval
FM Class I, Div. 1
ATEX Cat. 2GD
Material
Stainless Steel V2A (AISI 304)
Scale Interface
Analog
Cable
9.9 ft (3 m)
Repeatability
5 g
Repeatability, typical
1.8 g
Repeatability (typical)
0.004 lb
Protection Rating
IP65
IP67
Dimensions (LxHxW)
15.7 in x 4.25 in x 19.7 in (400 mm x 134.5 mm x 500 mm)
Weighing Pan Dimensions (LxHxW)
15.7 in x 3.23 in x 19.7 in (400 mm x 82 mm x 500 mm)
Linearity, typical
20 g
Linearity (typical)
0.02 lb
Linearity
0.02 lb (20 g)
Environment
Dusty & Light Wet (IP65)
Dimensions/Platform Size
from 15.8" to 19.7"
from 401 to 500 mm
Legal for Trade
NTEP
OIML
Hazardous Area
Zone 1/21
Division 1
Hygienic Design
No
Platform Type
Bench Platforms
Material Number(s)
71211165
